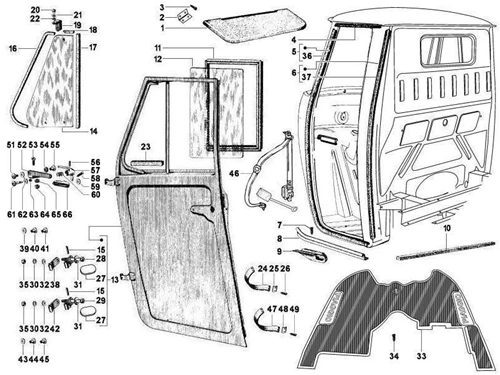

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007 PIAGGIO VU

Parties plastiques-carrosseries : 02.11 CABINE - PORTES
Cabine - portes
Search
264520 - PARE SOLEIL

1
P2R reference P2R reference 117910
Maker reference Maker reference 264520

264520 - PARE SOLEIL

More information

Quantity required : 1

CHARNIERE

2
P2R reference P2R reference
Maker reference Maker reference 141425

CHARNIERE

008265 - VIS

3
P2R reference P2R reference 63849
Maker reference Maker reference 0082655

008265 - VIS

More information

Quantity required : 2

193705 - JOINT

4
P2R reference P2R reference 113275
Maker reference Maker reference 193705

193705 - JOINT

More information

Quantity required : 2

JOINT

5
P2R reference P2R reference
Maker reference Maker reference 193704

JOINT

652279 - JOINT

5
P2R reference P2R reference 118510
Maker reference Maker reference 652279

652279 - JOINT

More information

Quantity required : 2

193707 -

6
P2R reference P2R reference 113920
Maker reference Maker reference 193707

193707 -

More information

Quantity required : 2

632604 - JOINT

6
P2R reference P2R reference 142830
Maker reference Maker reference 652280

632604 - JOINT

More information

Quantity required : 2

632604 - JOINT

6
P2R reference P2R reference 142830
Maker reference Maker reference 632604

632604 - JOINT

More information

Quantity required : 2

SCREW - -008432

7
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432

More information

Quantity required : 6

194946 - PROTECTION GAUCHE

8
P2R reference P2R reference 115523
Maker reference Maker reference 194946

194946 - PROTECTION GAUCHE

More information

Quantity required : 1

9
P2R reference P2R reference
Maker reference Maker reference 1168395

116498 - JOINT

10
P2R reference P2R reference 65701
Maker reference Maker reference 116498

116498 - JOINT

More information

Quantity required : 8

163663 - JOINT

11
P2R reference P2R reference 117721
Maker reference Maker reference 163663

163663 - JOINT

More information

Quantity required : 1

163661 - TRANSPARENT

12
P2R reference P2R reference 118490
Maker reference Maker reference 163661

163661 - TRANSPARENT

More information

Quantity required : 1

B002847 - PORTE DROITE

13
P2R reference P2R reference 154215
Maker reference Maker reference 567684

B002847 - PORTE DROITE

More information

Quantity required : 1

B002848 - PORTE GAUCHE

13
P2R reference P2R reference 135145
Maker reference Maker reference B002848

B002848 - PORTE GAUCHE

More information

Quantity required : 1

B002847 - PORTE DROITE

13
P2R reference P2R reference 154215
Maker reference Maker reference B002847

B002847 - PORTE DROITE

More information

Quantity required : 1

163665 - TRANSPARENT

14
P2R reference P2R reference 118350
Maker reference Maker reference 163665

163665 - TRANSPARENT

More information

Quantity required : 1

008847 - AXE S00884700

15
P2R reference P2R reference 111561
Maker reference Maker reference 0088475

008847 - AXE S00884700

More information

Quantity required : 2

163784 - JOINT

16
P2R reference P2R reference 113735
Maker reference Maker reference 163784

163784 - JOINT

More information

Quantity required : 1

163782 - JOINT

17
P2R reference P2R reference 113718
Maker reference Maker reference 163782

163782 - JOINT

More information

Quantity required : 1

163660 - JOINT

18
P2R reference P2R reference 110502
Maker reference Maker reference 163660

163660 - JOINT

More information

Quantity required : 1

183077 - JOINT

18
P2R reference P2R reference 111828
Maker reference Maker reference 183077

183077 - JOINT

More information

Quantity required : 1

108800 - PIVOT

19
P2R reference P2R reference 109979
Maker reference Maker reference 108800

108800 - PIVOT

More information

Quantity required : 1

20
P2R reference P2R reference
Maker reference Maker reference 0057455

006078 - RONDELLE S00607800

21
P2R reference P2R reference 63802
Maker reference Maker reference 0060785

006078 - RONDELLE S00607800

More information

Quantity required : 1

006965 - RONDELLE

22
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

006965 - RONDELLE

More information

Quantity required : 1

163659 - JOINT

23
P2R reference P2R reference 111490
Maker reference Maker reference 163659

163659 - JOINT

More information

Quantity required : 1

568148R - COURROIE DE RETENUE

24
P2R reference P2R reference 113031
Maker reference Maker reference 568148R

568148R - COURROIE DE RETENUE

More information

Quantity required : 1

25
P2R reference P2R reference
Maker reference Maker reference 0892815

568692 - VIS

26
P2R reference P2R reference 117339
Maker reference Maker reference 568692

568692 - VIS

More information

Quantity required : 4

190255 - BOUCHON

27
P2R reference P2R reference 111189
Maker reference Maker reference 190255

190255 - BOUCHON

More information

Quantity required : 1

030074 - BOULON S03007400

28
P2R reference P2R reference 65613
Maker reference Maker reference 0300745

030074 - BOULON S03007400

More information

Quantity required : 1

030072 - VIS S03007200

29
P2R reference P2R reference 65612
Maker reference Maker reference 0300725

030072 - VIS S03007200

More information

Quantity required : 1

012540 - RONDELLE

30
P2R reference P2R reference 65349
Maker reference Maker reference 0125405

012540 - RONDELLE

More information

Quantity required : 4

Entretoise charnière porte

31
P2R reference P2R reference
Maker reference Maker reference 106953

Entretoise charnière porte

MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

32
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

More information

Quantity required : 4

616737 - TAPIS

33
P2R reference P2R reference 118973
Maker reference Maker reference 616737

616737 - TAPIS

More information

Quantity required : 1

414948 - MACHOIRE (JEU)

34
P2R reference P2R reference 111243
Maker reference Maker reference 414948

414948 - MACHOIRE (JEU)

More information

Quantity required : 4

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

35
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 5

182363 - JOINT

36
P2R reference P2R reference 112097
Maker reference Maker reference 182363

182363 - JOINT

More information

Quantity required : 1

182363 - JOINT

37
P2R reference P2R reference 112097
Maker reference Maker reference 182363

182363 - JOINT

More information

Quantity required : 1

604690 - BOUCHON

38
P2R reference P2R reference 111920
Maker reference Maker reference 604690

604690 - BOUCHON

More information

Quantity required : 1

013935 - RONDELLE S01393500

39
P2R reference P2R reference 65367
Maker reference Maker reference 0139355

013935 - RONDELLE S01393500

More information

Quantity required : 1

108805 - VIS

40
P2R reference P2R reference 111906
Maker reference Maker reference 108805

108805 - VIS

More information

Quantity required : 1

604812 - VIS

41
P2R reference P2R reference 110398
Maker reference Maker reference 604812

604812 - VIS

More information

Quantity required : 1

604689 - BOUCHON

42
P2R reference P2R reference 110686
Maker reference Maker reference 604689

604689 - BOUCHON

More information

Quantity required : 1

013935 - RONDELLE S01393500

43
P2R reference P2R reference 65367
Maker reference Maker reference 0139355

013935 - RONDELLE S01393500

More information

Quantity required : 1

108805 - VIS

44
P2R reference P2R reference 111906
Maker reference Maker reference 108805

108805 - VIS

More information

Quantity required : 1

604812 - VIS

45
P2R reference P2R reference 110398
Maker reference Maker reference 604812

604812 - VIS

More information

Quantity required : 1

652062 - CEINTURE DE SECURITE

46
P2R reference P2R reference 120155
Maker reference Maker reference 652062

652062 - CEINTURE DE SECURITE

More information

Quantity required : 1

568148R - COURROIE DE RETENUE

47
P2R reference P2R reference 113031
Maker reference Maker reference 568148R

568148R - COURROIE DE RETENUE

More information

Quantity required : 1

48
P2R reference P2R reference
Maker reference Maker reference 0892815

568692 - VIS

49
P2R reference P2R reference 117339
Maker reference Maker reference 568692

568692 - VIS

More information

Quantity required : 4

108804 - VIS

51
P2R reference P2R reference 111917
Maker reference Maker reference 108804

108804 - VIS

More information

Quantity required : 1

108801 - EQUERRE

52
P2R reference P2R reference 110384
Maker reference Maker reference 108801

108801 - EQUERRE

More information

Quantity required : 1

109263 - EQUERRE

52
P2R reference P2R reference 154213
Maker reference Maker reference 109263

109263 - EQUERRE

More information

Quantity required : 1

031058 - VIS S03105800

53
P2R reference P2R reference 65634
Maker reference Maker reference 0310585

031058 - VIS S03105800

More information

Quantity required : 1

006177 - RONDELLE S00617700

54
P2R reference P2R reference 63806
Maker reference Maker reference 0061775

006177 - RONDELLE S00617700

More information

Quantity required : 1

108805 - VIS

55
P2R reference P2R reference 111906
Maker reference Maker reference 108805

108805 - VIS

More information

Quantity required : 1

008808 - EPINGLE S00880800

56
P2R reference P2R reference 63860
Maker reference Maker reference 0088085

008808 - EPINGLE S00880800

More information

Quantity required : 1

B003865 - LEVIER

57
P2R reference P2R reference 111153
Maker reference Maker reference B003865

B003865 - LEVIER

More information

Quantity required : 1

149028 - LEVIER

57
P2R reference P2R reference 115610
Maker reference Maker reference 149028

149028 - LEVIER

More information

Quantity required : 1

SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727-

58
P2R reference P2R reference 65387
Maker reference Maker reference 0157275

SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727-

More information

Quantity required : 1

109329 - RONDELLE

59
P2R reference P2R reference 65697
Maker reference Maker reference 109329

109329 - RONDELLE

More information

Quantity required : 1

062961 - RESSORT

60
P2R reference P2R reference 111012
Maker reference Maker reference 0629615

062961 - RESSORT

More information

Quantity required : 1

604558 - POULIE

61
P2R reference P2R reference 111393
Maker reference Maker reference 604558

604558 - POULIE

More information

Quantity required : 1

013935 - RONDELLE S01393500

62
P2R reference P2R reference 65367
Maker reference Maker reference 0139355

013935 - RONDELLE S01393500

More information

Quantity required : 1

116971 - GARNITURE ABOLIE

63
P2R reference P2R reference 110466
Maker reference Maker reference 116971

116971 - GARNITURE ABOLIE

More information

Quantity required : 1

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS and APE -804457

64
P2R reference P2R reference 111084
Maker reference Maker reference 804457

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457

More information

Quantity required : 2

65
P2R reference P2R reference
Maker reference Maker reference 0642635

182654 - EMBOUT

66
P2R reference P2R reference 111262
Maker reference Maker reference 182654

182654 - EMBOUT

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
