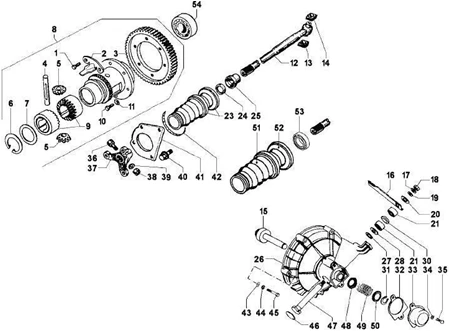

Moteur : 01.28 TRANSMISSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_01.28.PNG)
1 |
168065 - VIS More informationQuantity required : 2 |
||||||
|
2 |
829572 - SQUADRETTA More informationQuantity required : 1 |
||||||
|
3 |
COURONNE |
||||||
|
4 |
1680631 - PIVOT More informationQuantity required : 1 |
||||||
|
5 |
1326615 - SATELLITE More informationQuantity required : 2 |
||||||
|
6 |
006667 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
7 |
132665 - More informationQuantity required : 1 |
||||||
|
8 |
L7951208 - SCATOLA DIFFER More informationQuantity required : 1 |
||||||
|
9 |
L4990191 - PIGNON SOLEIL More informationQuantity required : 1 |
||||||
|
10 |
168065 - VIS More informationQuantity required : 4 |
||||||
|
11 |
VIS M10X18 |
||||||
|
12 |
DEMI-AXLE |
||||||
|
13 |
1680614 - ECROU CARDAN ATD More informationQuantity required : 2 |
||||||
|
14 |
1680614 - ECROU CARDAN ATD More informationQuantity required : 2 |
||||||
|
15 |
2387246 - GRUPPO REGGISP More informationQuantity required : 1 |
||||||
|
16 |
L5271191 - LEVIER D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
18 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
19 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
20 |
L7352055 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
231290 - DOUILLE More informationQuantity required : 2 |
||||||
|
23 |
L2920196 - CAOUTCHOUC AXE More informationQuantity required : 1 |
||||||
|
24 |
431038 - BOURRAGE AXE ATD More informationQuantity required : 1 |
||||||
|
25 |
223725 - BAGUE ROULEMENT AXE ATD More informationQuantity required : 1 |
||||||
|
26 |
L2630002 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/3/img/63813.jpg)
27 |
006415 - ANNEAU ELAST. S00641500 More informationQuantity required : 1 |
||||||
|
28 |
L7352056 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
285591 - BAGUE ETANCHEITEE More informationQuantity required : 1 |
||||||
|
31 |
006415 - ANNEAU ELAST. S00641500 More informationQuantity required : 1 |
||||||
|
32 |
JOINT |
||||||
|
33 |
238736 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
34 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
35 |
1A003108 - VIS More informationQuantity required : 2 |
||||||
|
35 |
1A003108 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
36 |
SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578 More informationQuantity required : 2 |
||||||
|
37 |
2681924 - ETOILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/7/img/65377.jpg)
38 |
015252 - ECROU S01525200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
39 |
016410 - ANNEAU More informationQuantity required : 2 |
||||||
|
40 |
830784 - VIS More informationQuantity required : 3 |
||||||
|
41 |
829566 - BRIDE More informationQuantity required : 1 |
||||||
|
42 |
224344 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
43 |
003056 - RONDELLE More informationQuantity required : 6 |
||||||
|
44 |
016406 - RONDELLE S01640600 More informationQuantity required : 6 |
||||||
|
45 |
030057 - VIS More informationQuantity required : 6 |
||||||
|
46 |
238731 - BOUCHON More informationQuantity required : 1 |
||||||
|
47 |
L1015075 - ALBERINO More informationQuantity required : 1 |
||||||
|
48 |
CUVETTE ATD-T1 |
||||||
|
49 |
RESSORT |
||||||
|
50 |
238733 - SCODELLINO SUP More informationQuantity required : 1 |
||||||
|
51 |
CAOUTCHOUC AXE |
||||||
|
52 |
L2920189 - CAOUTCHOUC AXE More informationQuantity required : 1 |
||||||
|
53 |
L3010260 - CAGE A ROUL. More informationQuantity required : 1 |
||||||
|
54 |
ROULEMENT |
