Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

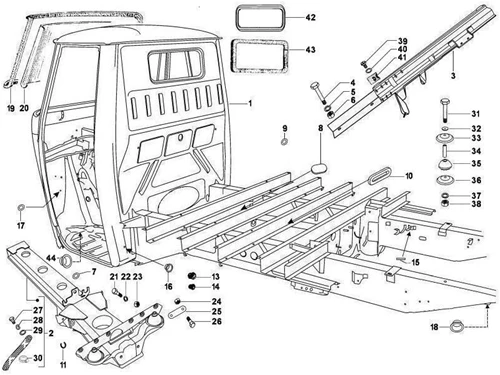

Parties plastiques-carrosseries : 02.01 CHASSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_02.01.PNG)
1 |
652035 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
632322 - SUPP MOTEUR More informationQuantity required : 1 |
||||||
|
3 |
645014 - SUPP MOTEUR More informationQuantity required : 1 |
||||||
|
4 |
568260 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
5 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
6 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/7/img/65787.jpg)
7 |
178610 - PASSE CABLES More informationQuantity required : 3 |
||||||
|
8 |
190255 - BOUCHON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/0/img/65720.jpg)
9 |
125998 - BOUCHON More informationQuantity required : 5 |
||||||
|
10 |
567921 - PASSE CABLES More informationQuantity required : 1 |
||||||
|
11 |
568140 - PASSE CABLES More informationQuantity required : 1 |
||||||
|
13 |
119241 - BOUCHON More informationQuantity required : 4 |
||||||
|
14 |
128009 - CAPSULE More informationQuantity required : 1 |
||||||
|
15 |
RENIFLARD |
||||||
|
16 |
190517 - BOUCHON More informationQuantity required : 2 |
||||||
|
17 |
568154 - PASSE CABLES More informationQuantity required : 2 |
||||||
|
18 |
568288 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/8/6/img/119386.jpg)
19 |
109012 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/1/6/img/122816.jpg)
20 |
WIND SHIELD "PIAGGIO GENUINE PART" APE CALESSINO, CLASSIC -587963 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
21 |
031119 - BOULON More informationQuantity required : 6 |
||||||
|
22 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 6 |
||||||
|
23 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/5/img/65375.jpg)
24 |
015235 - ECROU More informationQuantity required : 2 |
||||||
|
25 |
632299 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
26 |
031159 - BOULON More informationQuantity required : 2 |
||||||
|
27 |
031119 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
28 |
012540 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
29 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
|
31 |
VIS |
||||||
|
32 |
RONDELLE |
||||||
|
33 |
160631 - ENTRETOISE T1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/1/img/114961.jpg)
34 |
219299 - ENTRETOISE T1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/7/img/115177.jpg)
35 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO 400 APE, CLASSIC, CALESSINO -265091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/9/2/img/111992.jpg)
36 |
218758 - ENTRETOISE T1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
37 |
016410 - ANNEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
38 |
020110 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
39 |
267115 - VIS More informationQuantity required : 3 |
||||||
|
40 |
241656 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
41 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 2 |
||||||
|
42 |
107952 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
43 |
125707 - JOINT More informationQuantity required : 1 |
||||||
|
44 |
PASSE CABLES |
||||||
|
46 |
Entretoise charnière porte |
