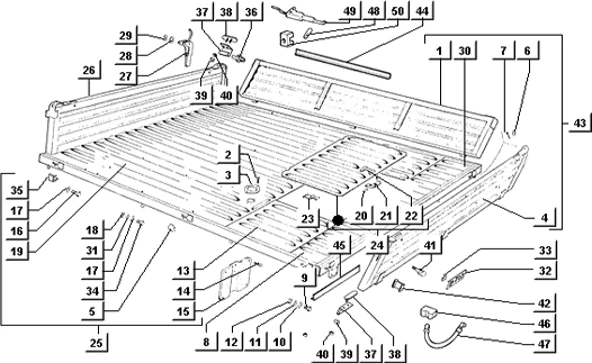

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Châssis : T88/A PLATEAU RIDELLE ET PORTILLON EN ALLIAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T88_A_20251008091332.PNG)
1 |
RIDELLE LATERAL |
||||||
|
1 |
RIDELLE |
||||||
|
1 |
CM032901 - SPONDA SX ** More informationQuantity required : 1 |
||||||
|
1 |
CM032902 - SPONDA DX ** More informationQuantity required : 1 |
||||||
|
1 |
CM032903 - CACHE G More informationQuantity required : 1 |
||||||
|
1 |
CM032904 - CACHE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
2 |
SCREW - -008432 More informationQuantity required : 4 |
||||||
|
3 |
212558 - COUVERCLE More informationQuantity required : 2 |
||||||
|
4 |
565849 - ABATTANT AR More informationQuantity required : 1 |
||||||
|
4 |
568440 - PORTELLO P.** More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057 More informationQuantity required : 3 |
||||||
|
7 |
B005668 - GOUPILLE More informationQuantity required : 3 |
||||||
|
8 |
|
||||||
|
8 |
1882826 - PARTIE AR PLATEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
9 |
010047 - VIS S01004700 More informationQuantity required : 4 |
||||||
|
10 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
12 |
020105 - ECROU S02010500 More informationQuantity required : 4 |
||||||
|
13 |
1882785 - PARTIE LAT G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
14 |
008265 - VIS More informationQuantity required : 4 |
||||||
|
15 |
MONOGRAMME |
||||||
|
15 |
567999 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
16 |
031117 - BOULON S03111700 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
18 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 6 |
||||||
|
19 |
|
||||||
|
20 |
017718 - GOUPILLE More informationQuantity required : 2 |
||||||
|
21 |
162548 - CLIQUET More informationQuantity required : 2 |
||||||
|
22 |
162549 - RESSORT More informationQuantity required : 2 |
||||||
|
23 |
162546 - RESSORT More informationQuantity required : 2 |
||||||
|
24 |
6117665 - PORTELLO CPL T More informationQuantity required : 1 |
||||||
|
25 |
6117665 - PORTELLO CPL T More informationQuantity required : 1 |
||||||
|
26 |
5680285 - PIANALE CPI TM More informationQuantity required : 1 |
||||||
|
26 |
5680295 - PIANALE CPI TM More informationQuantity required : 1 |
||||||
|
27 |
128804 - LEVIER G More informationQuantity required : 2 |
||||||
|
27 |
128805 - LEVIER D More informationQuantity required : 1 |
||||||
|
27 |
219016 - LEVIER AVT D More informationQuantity required : 1 |
||||||
|
27 |
219017 - LEVIER AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
28 |
003058 - RONDELLE S00305800 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
29 |
005967 - CLIPS S00596700 More informationQuantity required : 4 |
||||||
|
30 |
1882776 - RIDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
31 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
199162 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
32 |
MONOGRAMME P703V |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
33 |
008108 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
34 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
35 |
TAMPON |
||||||
|
35 |
186323 - SILENT BLOC More informationQuantity required : 2 |
||||||
|
36 |
219731 - PIVOT More informationQuantity required : 8 |
||||||
|
37 |
|
||||||
|
37 |
|
||||||
|
37 |
218141 - CHARNIERE MOBILE More informationQuantity required : 8 |
||||||
|
37 |
565786 - CHARNIERE MOBILE More informationQuantity required : 8 |
||||||
|
38 |
PLAQUE |
||||||
|
38 |
B023257 - PLAQUE More informationQuantity required : 8 |
||||||
|
39 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
40 |
012138 - ECROU S01213800 More informationQuantity required : 10 |
||||||
|
41 |
PIVOT |
||||||
|
42 |
PATTE |
||||||
|
43 |
Kit ridelles |
||||||
|
43 |
Kit ridelles |
||||||
|
44 |
565855 - JOINT More informationQuantity required : 2 |
||||||
|
44 |
CM033001 - PROTECTION More informationQuantity required : 2 |
||||||
|
44 |
CM033002 - PROTECTION More informationQuantity required : 2 |
||||||
|
45 |
CM033003 - PROTECTION More informationQuantity required : 1 |
||||||
|
46 |
264948 - ETRIER More informationQuantity required : 1 |
||||||
|
46 |
264949 - ETRIER More informationQuantity required : 1 |
||||||
|
47 |
B025114 - CABLE More informationQuantity required : 2 |
||||||
|
48 |
264834 - PIVOT More informationQuantity required : 8 |
||||||
|
49 |
264784 - POIGNEE More informationQuantity required : 2 |
||||||
|
49 |
264785 - POIGNEE More informationQuantity required : 2 |
||||||
|
50 |
264829 - LEVIER PLATEAU ATM ALU More informationQuantity required : 2 |
||||||
|
51 |
264783 - BOULON More informationQuantity required : 10 |
||||||
|
52 |
493540 - KIT CANTONA** More informationQuantity required : 1 |
||||||
|
53 |
264802 - PLAQUE T1 DROITE More informationQuantity required : 1 |
||||||
|
54 |
565740 - PLAQUE More informationQuantity required : 2 |
||||||
|
55 |
264803 - PLAQUE More informationQuantity required : 1 |
