Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

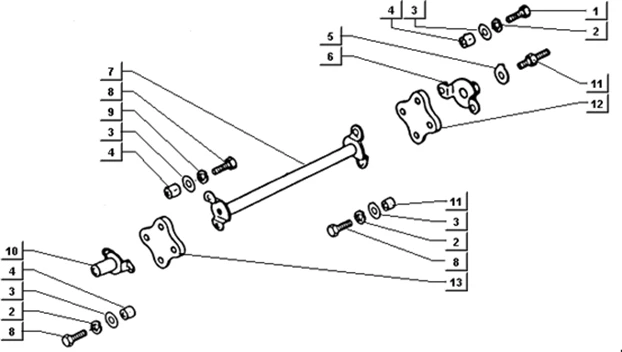

Transmisisons : T99 ARBRE DE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T99_20251008091142.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
031091 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
2 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
3 |
013950 - RONDELLE S01395000 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
4 |
231027 - ENTRETOISE More informationQuantity required : 8 |
||||||
5 |
232186 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
230975 - ECROU VM More informationQuantity required : 1 |
||||||
|
7 |
232180 - ARBRE More informationQuantity required : 1 |
||||||
|
8 |
031091 - VIS More informationQuantity required : 4 |
||||||
|
9 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
|
10 |
567039 - MOYEU PARTIE POMPE More informationQuantity required : 1 |
||||||
|
11 |
232187 - VIS More informationQuantity required : 1 |
||||||
|
12 |
230971 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
13 |
230971 - ACCOUPLEMENT More informationQuantity required : 1 |
