Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

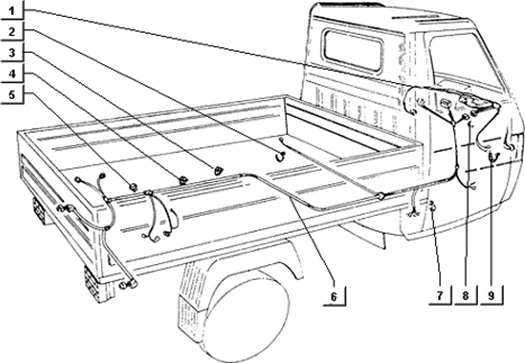

Connexions électriques : T81 INSTALLATION ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T81_20251008090625.PNG)
1 |
FAISCEAU |
||||||
|
1 |
FAISCEAU |
||||||
|
1 |
639856 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
1 |
FAISCEAU |
||||||
|
1 |
FAISCEAU |
||||||
|
1 |
581627 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
613445 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
2 |
214139 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.jpg)
3 |
140435 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
191002 - RESSORT More informationQuantity required : 4 |
||||||
|
5 |
194945 - CLIPS More informationQuantity required : 4 |
||||||
|
6 |
GROUPE CABLES |
||||||
|
6 |
GROUPE CABLES |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
7 |
271477 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
072761 - PROTECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
9 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
