Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

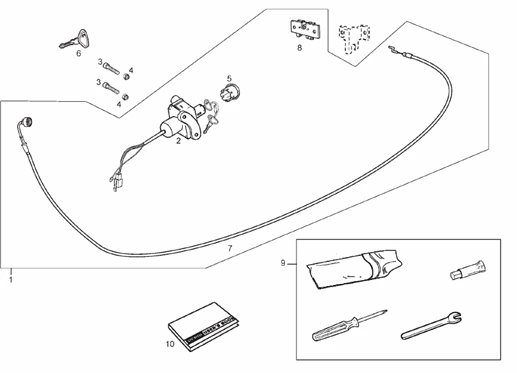

Accessoires : 12 OUTILLAGE SPECIAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_12.png)
1 |
00G05903251 - ENS.KIT SERRURES HUNTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/3/9/img/64139.jpg)
2 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 100 DIESIS -00G05900331- More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
4 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
5 |
IGNITION SWITCH COVER "PIAGGIO GENUINE PART" PIAGGIO 50 DIESIS -00G01500021- More informationQuantity required : 1 |
||||||
|
6 |
00H01801411 - CLEF More informationQuantity required : 1 |
||||||
|
7 |
00G00602181 - SOUS-EN.CABLE FERMETURE SELLE More informationQuantity required : 1 |
||||||
|
8 |
00G06800501 - PLAQUE VERROUILLAGE DE LA SELL More informationQuantity required : 1 |
||||||
|
9 |
00G05105561 - SAC A OUTILS COMPLET More informationQuantity required : 1 |
||||||
|
10 |
864013 - MANUEL D'INSTRUCTIONS More informationQuantity required : 1 |
