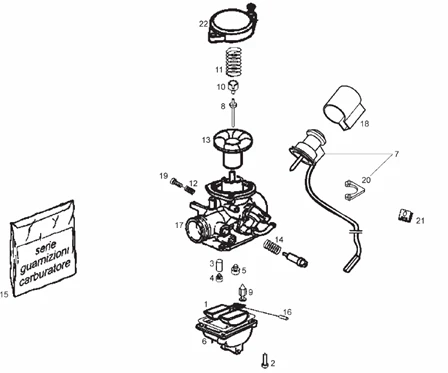

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

Moteur : 30 CARBURATEUR
Carburateur
Search
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" 50 FLY, VESPA LX, LIBERTY, ZIP 4 stroke -828832-

1
P2R reference P2R reference 68780
Maker reference Maker reference 828832

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" 50 FLY, VESPA LX, LIBERTY, ZIP 4 STROKE -828832-

More information

Quantity required : 1

DIFFUSER TUBE "PIAGGIO GENUINE PART" 50 FLY 4 stroke, VESPA LX 4 stroke, LIBERTY 4 stroke, VESPA-S 4 stroke, ZIP 4 stroke -CM142203

2
P2R reference P2R reference 73191
Maker reference Maker reference CM142203

DIFFUSER TUBE "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, VESPA LX 4 STROKE, LIBERTY 4 STROKE, VESPA-S 4 STROKE, ZIP 4 STROKE -CM142203

More information

Quantity required : 1

828825 - EMULSEUR

3
P2R reference P2R reference 68778
Maker reference Maker reference 828825

828825 - EMULSEUR

More information

Quantity required : 1

CM142102 - GIGLEUR MAX 75

4
P2R reference P2R reference 73189
Maker reference Maker reference CM142102

CM142102 - GIGLEUR MAX 75

More information

Quantity required : 1

IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke -CM142302

5
P2R reference P2R reference 73193
Maker reference Maker reference CM142302

IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -CM142302

More information

Quantity required : 1

CM142805 - CUVE CARBURATEUR

6
P2R reference P2R reference 73203
Maker reference Maker reference CM142805

CM142805 - CUVE CARBURATEUR

More information

Quantity required : 1

CHOKE "PIAGGIO GENUINE PART" 50 VESPA LX 4 stroke, PRIMAVERA 4 stroke, VESPA-S 4 stroke, SPRINT 4 stroke, FLY 4 stroke, LIBERTY 4 stroke, ZIP 4 stroke -CM142912

7
P2R reference P2R reference 73208
Maker reference Maker reference CM142912

CHOKE "PIAGGIO GENUINE PART" 50 VESPA LX 4 STROKE, PRIMAVERA 4 STROKE, VESPA-S 4 STROKE, SPRINT 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, ZIP 4 STROKE -CM142912

More information

Quantity required : 1

NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc 4STROKE -CM142705

8
P2R reference P2R reference 73199
Maker reference Maker reference CM142705

NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 4STROKE -CM142705

More information

Quantity required : 1

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke ET MAXISCOOTER 125 CC -CM147102-

9
P2R reference P2R reference 73248
Maker reference Maker reference CM147102

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102-

More information

Quantity required : 1

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 4STROKE + MAXISCOOTER 125 CC -828822

10
P2R reference P2R reference 68776
Maker reference Maker reference 828822

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 4STROKE + MAXISCOOTER 125 CC -828822

More information

Quantity required : 1

CM142402 - RESSORT

11
P2R reference P2R reference 73196
Maker reference Maker reference CM142402

CM142402 - RESSORT

More information

Quantity required : 1

828841 - RESSORT

12
P2R reference P2R reference 68787
Maker reference Maker reference 828841

828841 - RESSORT

More information

Quantity required : 1

SLIDE/DIAPHRAGM "PIAGGIO GENUINE PART" PIAGGIO 50 FLY , LIBERTY ZIP , VESPA LX , VESPA S /APRILIA 50 SPORT-CITY , SCARABEO (ALL MODELS 4 stroke POWERED -CM146601

13
P2R reference P2R reference 73246
Maker reference Maker reference CM146601

SLIDE/DIAPHRAGM "PIAGGIO GENUINE PART" PIAGGIO 50 FLY , LIBERTY ZIP , VESPA LX , VESPA S /APRILIA 50 SPORT-CITY , SCARABEO (ALL MODELS 4 STROKE POWERED -CM146601

More information

Quantity required : 1

828830 - RESSORT

14
P2R reference P2R reference 68779
Maker reference Maker reference 828830

828830 - RESSORT

More information

Quantity required : 1

FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50-100 CC 4 stroke -497038-

15
P2R reference P2R reference 66909
Maker reference Maker reference 497038

FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50-100 CC 4 STROKE -497038-

More information

Quantity required : 1

828833 - AXE FLOTTEUR

16
P2R reference P2R reference 68781
Maker reference Maker reference 828833

828833 - AXE FLOTTEUR

More information

Quantity required : 1

828839 - PLAQUETTE

17
P2R reference P2R reference 68785
Maker reference Maker reference 828839

828839 - PLAQUETTE

More information

Quantity required : 1

CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844-

18
P2R reference P2R reference 68789
Maker reference Maker reference 828844

CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844-

More information

Quantity required : 1

828840 - VIS

19
P2R reference P2R reference 68786
Maker reference Maker reference 828840

828840 - VIS

More information

Quantity required : 1

828843 - PLAQUETTE

20
P2R reference P2R reference 68788
Maker reference Maker reference 828843

828843 - PLAQUETTE

More information

Quantity required : 1

847778 - PLAQUETTE

21
P2R reference P2R reference 69541
Maker reference Maker reference 847778

847778 - PLAQUETTE

More information

Quantity required : 1

828824 - COUVERCLE

22
P2R reference P2R reference 68777
Maker reference Maker reference 828824

828824 - COUVERCLE

More information

Quantity required : 1
