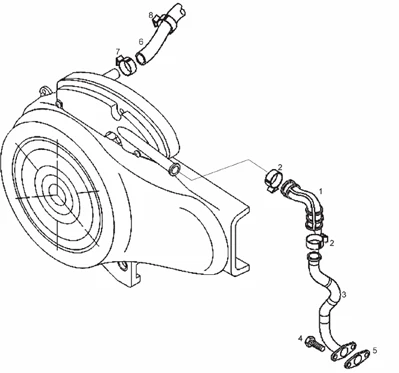

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

Moteur : 31 AIR SECONDAIRE
Air secondaire
Search
833472 - MANCHON

1
P2R reference P2R reference 69065
Maker reference Maker reference 833472

833472 - MANCHON

More information

Quantity required : 1

CM001905 - COLLIER

2
P2R reference P2R reference 72867
Maker reference Maker reference CM001905

CM001905 - COLLIER

More information

Quantity required : 1

PIPE - FOR GAZ RECYCLING BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke 2 VALVES -833473

3
P2R reference P2R reference 69066
Maker reference Maker reference 833473

PIPE - FOR GAZ RECYCLING BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE 2 VALVES -833473

More information

Quantity required : 1

B016426 - VIS TEF M6X14

4
P2R reference P2R reference 72706
Maker reference Maker reference B016426

B016426 - VIS TEF M6X14

More information

Quantity required : 1

GASKET FOR GAS RECIRCULATION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 4 stroke/MAXISCOOTER 125 -832059-

5
P2R reference P2R reference 68989
Maker reference Maker reference 832059

GASKET FOR GAS RECIRCULATION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 4 STROKE/MAXISCOOTER 125 -832059-

More information

Quantity required : 1

843525 - TUBE

6
P2R reference P2R reference 69290
Maker reference Maker reference 843525

843525 - TUBE

More information

Quantity required : 1

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

7
P2R reference P2R reference 72865
Maker reference Maker reference CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

More information

Quantity required : 1

CM017807 - RESSORT

8
P2R reference P2R reference 72930
Maker reference Maker reference CM017807

CM017807 - RESSORT

More information

Quantity required : 1
