Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

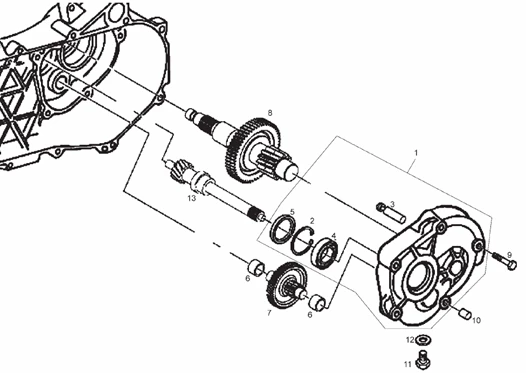

Moteur : 28 REDUCTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_28.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/9/img/72649.jpg)
1 |
TRANSMISSION SIDE COVER "PIAGGIO GENUINE PART" 50 TYPHOON, FLY, LIBERTY, VESPA PRIMAVERA, SPRINT/APRILIA 50 SCARABEO, SR MOTARD -B0146385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
2 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/0/img/66120.jpg)
3 |
272921 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
4 |
DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
5 |
GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/6/img/66196.jpg)
6 |
WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639- More informationQuantity required : 1 |
||||||
7 |
DRIVE SHAFT-INTERMEDIATE "PIAGGIO GENUINE PART" PIAGGIO 50 LIBERTY, FLY, PRIMAVERA, SPRINT -4835845- More informationQuantity required : 1 |
||||||
|
8 |
8250845 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
9 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/8/img/66548.jpg)
10 |
COMPENSATOR RING ON MAIN PULLEY AXLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTERS 50 CC -478197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
11 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
12 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/1/img/66601.jpg)
13 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 50 FLY 2STROKE 2000>, FLY 4STROKE 2006>, LIBERTY 2STROKE 2000>, TYPHOON 2011>VESPA PRIMAVERA 4STROKE 2012>/APRILIA SR MOTARD 2STROKE 2012>, SPORT-CITY 2STROKE 2008> -480848- More informationQuantity required : 1 |
