Vehicle Exploded View - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

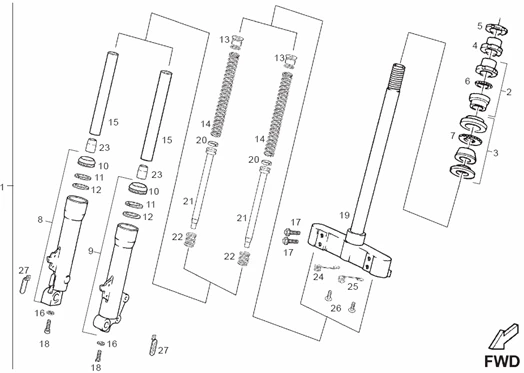

Vues éclatées : 02A FOURCHE AV. SEBAC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1140/Boulevard_200_E3_2005-2006_(EMEA)_02A.png)
1 |
00G00211001 - FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
2 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
3 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
4 |
STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
5 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094- More informationQuantity required : 1 |
||||||
|
6 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
|
7 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
||||||
|
8 |
00G00204131 - FOURREAU DE FOURCHE DR. More informationQuantity required : 1 |
||||||
|
9 |
00G00204121 - FOURREAU DE FOURCHE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
10 |
FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127- More informationQuantity required : 1 |
||||||
|
11 |
00G00201601 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
12 |
00G00204471 - R-ANNEAU FOURREAU FOURCHE More informationQuantity required : 1 |
||||||
|
13 |
00G02002541 - BOUCHON FOURCHE More informationQuantity required : 1 |
||||||
|
14 |
00G00206171 - RESSORT FOURCHE More informationQuantity required : 1 |
||||||
|
15 |
00G00202191 - TIGE FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
16 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
17 |
AP8150170 - VIS More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
19 |
00G00211001 - FOURCHE More informationQuantity required : 1 |
||||||
|
20 |
00G00200501 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
21 |
00G00201541 - PISTON HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
22 |
00G00202881 - RESSORT PISTON HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
23 |
00G00201181 - JOINT PISTON HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
24 |
00H04401261 - RESSORT More informationQuantity required : 1 |
||||||
|
25 |
00G00901521 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
26 |
969296 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/6/img/64616.jpg)
27 |
REFLECTOR - ON FORK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01802081- More informationQuantity required : 1 |
