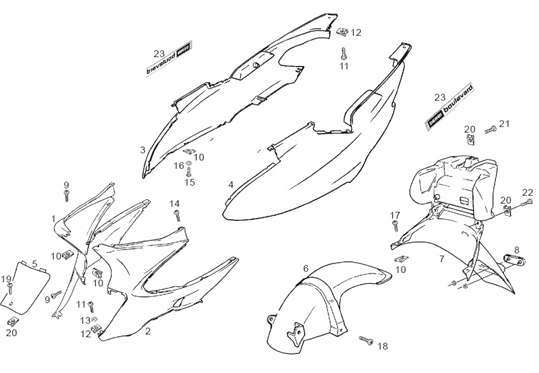

Vues éclatées : 11 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1140/Boulevard_200_E3_2005-2006_(EMEA)_11.png)
1 |
00G06803232 - COUV. LATERAL DR. AVANT More informationQuantity required : 1 |
||||||
|
2 |
00G06803322 - COUV. LATERAL GA. AVANT More informationQuantity required : 1 |
||||||
|
3 |
00G005020865 - COUVERCLE LATERAL D More informationQuantity required : 1 |
||||||
|
3 |
86240900WG5 - TAPA LATRL.DR.GRS.MTL.BLVD 06 More informationQuantity required : 1 |
||||||
|
3 |
00G00502085 - COUVERCLE LATERAL DR. More informationQuantity required : 1 |
||||||
|
3 |
86240900WA1 - TAPA LATRL.DR.AZL.GRG.BLVD 06 More informationQuantity required : 1 |
||||||
|
3 |
00G005020875 - COUVERCLE LATERAL DR. More informationQuantity required : 1 |
||||||
|
3 |
00G005020885 - COUVERCLE LATERAL DR. More informationQuantity required : 1 |
||||||
|
4 |
00G00502075 - COUVERCLE LATERAL GA. More informationQuantity required : 1 |
||||||
|
4 |
00G005020775 - COUVERCLE LATERAL GAU More informationQuantity required : 1 |
||||||
|
4 |
00G005020765 - COUVERCLE LATERAL G More informationQuantity required : 1 |
||||||
|
4 |
00G005020785 - COUVERCLE LATERAL GAU More informationQuantity required : 1 |
||||||
|
4 |
86241000WA1 - TAPA LATRL.IZ.AZL.GRG.BLVD 06 More informationQuantity required : 1 |
||||||
|
4 |
86241000WG55 - R-TAPA LATRL.IZ.GRS.MTL.BLVD 06 More informationQuantity required : 1 |
||||||
|
5 |
00G05904892 - INSP PLATE More informationQuantity required : 1 |
||||||
|
6 |
575824 - GARDE -BOUE More informationQuantity required : 1 |
||||||
|
7 |
00G00708343 - SUPPL. GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
8 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 1 |
||||||
|
9 |
00011241300 - BOULON More informationQuantity required : 1 |
||||||
|
10 |
00G01501371 - ECROU D4,2 MIK 212846 More informationQuantity required : 1 |
||||||
|
11 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
12 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
13 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
|
14 |
00011031801 - VIS TARAUD 3,6X18 NOIR CL89H More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
19 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
21 |
00D05910081 - VIS More informationQuantity required : 1 |
||||||
|
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
23 |
00G01831934 - ADHESIF BOULEVARD More informationQuantity required : 1 |
||||||
|
23 |
00G01831931 - ADHESIF BOULEVARD More informationQuantity required : 1 |
