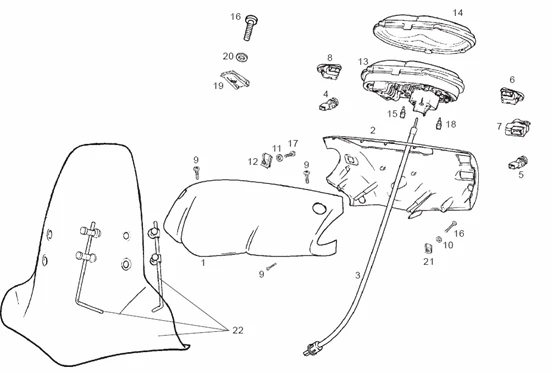

Vehicle Exploded View - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA)

	P2R reference	194529
	Maker reference	00G010135175

00G010135175 - CACHE DIRECTION AV.

	P2R reference	194530
	Maker reference	00G01013516

00G01013516 - CACHE DIRECTION AV.

	P2R reference	194526
	Maker reference	86240700WA1

86240700WA1 - CARCASA.ANT.AZL.GRG.BLVD 06

	P2R reference	194527
	Maker reference	00G010135155

00G010135155 - CACHE DIRECTION AV.

	P2R reference	194525
	Maker reference	00G01013518

00G01013518 - CACHE DIRECTION AV.

	P2R reference	194528
	Maker reference	86240700WG5

86240700WG5 - CARCASA.ANT.GRS.MTL.BLVD 06

	P2R reference	194531
	Maker reference	00G01014521

00G01014521 - CACHE DIRECTION AR.

	P2R reference	194532
	Maker reference	00G01608021

00G01608021 - CABLE COMPTEUR

	P2R reference	67177
	Maker reference	58058R

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

	P2R reference	187394
	Maker reference	00G02101631

00G02101631 - ENSEMBLE COMMUTATEUR DEMARRAGE

	P2R reference	67982
	Maker reference	642670

HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 125-250-300-400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, 125 RUNNER -642670-

	P2R reference	67984
	Maker reference	6426795

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795

	P2R reference	66271
	Maker reference	294340

LIGHTS SWITCH "PIAGGIO GENUINE PART" 125-250-500 X9, 125 HEXAGON/GILERA 50 STALKER -294340-

	P2R reference	63683
	Maker reference	000110518015

00011051801 - VIS TARAUD

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference
	Maker reference	031040

VIS

	P2R reference	194436
	Maker reference	00G01501371

00G01501371 - ECROU D4,2 MIK 212846

	P2R reference	194534
	Maker reference	00G01632522

00G01632522 - ENSEMBLE COMPTEUR MPH

	P2R reference	194535
	Maker reference	00G01627522

00G01627522 - ENSEMBLE COMPTEUR KMH

	P2R reference	194536
	Maker reference	00G01607071

00G01607071 - GLACE COMPTEUR KILOMETRIQUE

	P2R reference	64003
	Maker reference	00G01602581

00G01602581 - R-PORTE-LAMPES

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	63689
	Maker reference	000112413005

00011241300 - BOULON

	P2R reference	64002
	Maker reference	00G01601581

00G01601581 - R-PORTE-LAMPES

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference
	Maker reference	00G01505751

PARE-BRISE AVANT
