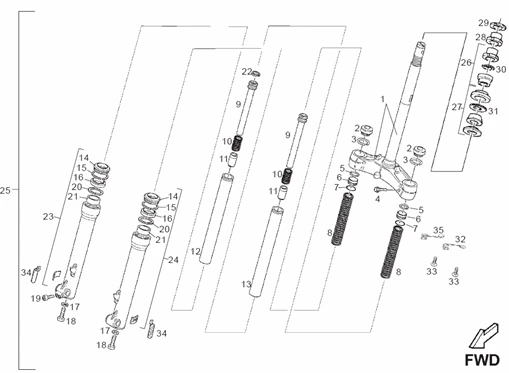

Vehicle Exploded View - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA) DERBI

Vues éclatées : 02B FOURCHE AV. MARZOCCHI
Fourche Av. MARZOCCHI
Search
862020 - R-TIJA PLATINA

1
P2R reference P2R reference 194416
Maker reference Maker reference 862020

862020 - R-TIJA PLATINA

More information

Quantity required : 1

600136 - BOUCHON FOURCHE

2
P2R reference P2R reference 67415
Maker reference Maker reference 600136

600136 - BOUCHON FOURCHE

More information

Quantity required : 1

862021 - R-ANILLO TAPON PIERNA

3
P2R reference P2R reference 194417
Maker reference Maker reference 862021

862021 - R-ANILLO TAPON PIERNA

More information

Quantity required : 1

861652 - R-TORNILLO FIJACION M10X50

4
P2R reference P2R reference 194418
Maker reference Maker reference 861652

861652 - R-TORNILLO FIJACION M10X50

More information

Quantity required : 1

AP8123697 - BAGUE DE BUTEE;

5
P2R reference P2R reference 47328
Maker reference Maker reference AP8123697

AP8123697 - BAGUE DE BUTEE;

More information

Quantity required : 1

862023 - R-CUERPO TAPON PIERNA

6
P2R reference P2R reference 194419
Maker reference Maker reference 862023

862023 - R-CUERPO TAPON PIERNA

More information

Quantity required : 1

00H00202451 - RONDELLE

7
P2R reference P2R reference 188445
Maker reference Maker reference 00H00202451

00H00202451 - RONDELLE

More information

Quantity required : 1

862024 - R-MUELLE HORQUILLA

8
P2R reference P2R reference 194420
Maker reference Maker reference 862024

862024 - R-MUELLE HORQUILLA

More information

Quantity required : 1

862025 - R-PISTON HIDRAULICO

9
P2R reference P2R reference 194421
Maker reference Maker reference 862025

862025 - R-PISTON HIDRAULICO

More information

Quantity required : 1

862026 - R-MUELLE PISTON HIDRAULICO

10
P2R reference P2R reference 194422
Maker reference Maker reference 862026

862026 - R-MUELLE PISTON HIDRAULICO

More information

Quantity required : 1

862034 - R-CASQUILLO TUBO HIDRAULICO

11
P2R reference P2R reference 194423
Maker reference Maker reference 862034

862034 - R-CASQUILLO TUBO HIDRAULICO

More information

Quantity required : 1

862027 - R-TUBO PRINCIPAL DERECHO

12
P2R reference P2R reference 194424
Maker reference Maker reference 862027

862027 - R-TUBO PRINCIPAL DERECHO

More information

Quantity required : 1

862028 - R-TUBO PRINCIPAL IZQUIERDO

13
P2R reference P2R reference 194425
Maker reference Maker reference 862028

862028 - R-TUBO PRINCIPAL IZQUIERDO

More information

Quantity required : 1

FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127-

14
P2R reference P2R reference 67413
Maker reference Maker reference 600127

FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127-

More information

Quantity required : 1

600125 - CIRCLIPS

15
P2R reference P2R reference 67411
Maker reference Maker reference 600125

600125 - CIRCLIPS

More information

Quantity required : 1

FORK OIL SEAL MARZOCCHI "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX -600126

16
P2R reference P2R reference 67412
Maker reference Maker reference 600126

FORK OIL SEAL MARZOCCHI "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX -600126

More information

Quantity required : 1

00G02001851 - R-ARAND.TORN.FIJ.PIERNA GP1 50

17
P2R reference P2R reference 194426
Maker reference Maker reference 00G02001851

00G02001851 - R-ARAND.TORN.FIJ.PIERNA GP1 50

More information

Quantity required : 1

00H00200831 - VIS

18
P2R reference P2R reference 64165
Maker reference Maker reference 00H00200831

00H00200831 - VIS

More information

Quantity required : 1

862029 - VIS

19
P2R reference P2R reference 69938
Maker reference Maker reference 862029

862029 - VIS

More information

Quantity required : 1

600128 - RONDELLE

20
P2R reference P2R reference 67414
Maker reference Maker reference 600128

600128 - RONDELLE

More information

Quantity required : 1

AP8203447 - DOUILLE DE COULISSEMENT;

21
P2R reference P2R reference 72160
Maker reference Maker reference AP8203447

AP8203447 - DOUILLE DE COULISSEMENT;

More information

Quantity required : 1

862030 - R-ANILLO PISTON HIDRAULICO

22
P2R reference P2R reference 194427
Maker reference Maker reference 862030

862030 - R-ANILLO PISTON HIDRAULICO

More information

Quantity required : 1

862032 - R-CTO.PIERNA DERECHA

23
P2R reference P2R reference 194428
Maker reference Maker reference 862032

862032 - R-CTO.PIERNA DERECHA

More information

Quantity required : 1

862031 - R-CTO.PIERNA IZQUIERDA HORQUILLA

24
P2R reference P2R reference 194429
Maker reference Maker reference 862031

862031 - R-CTO.PIERNA IZQUIERDA HORQUILLA

More information

Quantity required : 1

00G00211001 - FOURCHE

25
P2R reference P2R reference 194405
Maker reference Maker reference 00G00211001

00G00211001 - FOURCHE

More information

Quantity required : 1

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

26
P2R reference P2R reference 68161
Maker reference Maker reference 65069345

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

More information

Quantity required : 1

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

27
P2R reference P2R reference 87018
Maker reference Maker reference 65007545

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

More information

Quantity required : 1

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

28
P2R reference P2R reference 63783
Maker reference Maker reference 00375145

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

More information

Quantity required : 1

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

29
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

More information

Quantity required : 1

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

30
P2R reference P2R reference 68161
Maker reference Maker reference 65069345

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

More information

Quantity required : 1

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

31
P2R reference P2R reference 87018
Maker reference Maker reference 65007545

STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545

More information

Quantity required : 1

00G00901521 - RESSORT

32
P2R reference P2R reference 194415
Maker reference Maker reference 00G00901521

00G00901521 - RESSORT

More information

Quantity required : 1

969296 - BOULON

33
P2R reference P2R reference 70959
Maker reference Maker reference 969296

969296 - BOULON

More information

Quantity required : 1

REFLECTOR - ON FORK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01802081-

34
P2R reference P2R reference 64616
Maker reference Maker reference 00H01802081

REFLECTOR - ON FORK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01802081-

More information

Quantity required : 1

00H04401261 - RESSORT

35
P2R reference P2R reference 192912
Maker reference Maker reference 00H04401261

00H04401261 - RESSORT

More information

Quantity required : 1
