Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

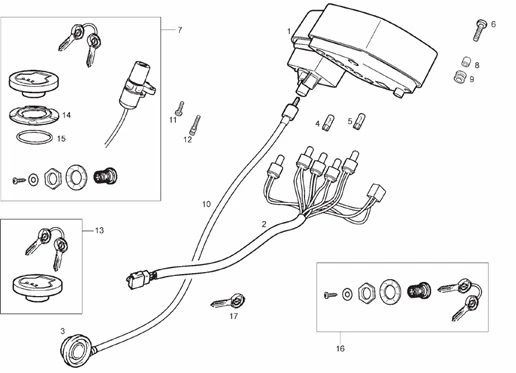

Vues éclatées : 12 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_12.png)
1 |
864811 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
864837 - CTO.TABLIER ING.CROSS CITY 125CC 08 More informationQuantity required : 1 |
||||||
|
1 |
00H01641521 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
00H01640521 - CTO.TABLIER SD 125CC 4T (Z) More informationQuantity required : 1 |
||||||
|
2 |
00H04321651 - INSTALLATION ÉLECTRIQUE More informationQuantity required : 1 |
||||||
|
3 |
863376 - CTO.REENVIO.CTA.KMS.CR.CITY 07 More informationQuantity required : 1 |
||||||
|
4 |
00G01602581 - R-PORTE-LAMPES More informationQuantity required : 1 |
||||||
|
5 |
00G01601581 - R-PORTE-LAMPES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
6 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
|
7 |
00H05909251 - ENS.KIT SERRURES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
8 |
00H01600911 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
9 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/8/4/img/64584.jpg)
10 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 GILERA SMT,RCR 2006> -00H01617021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
11 |
AP8150169 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
12 |
00H06300791 - VIS More informationQuantity required : 1 |
||||||
|
13 |
00H00400131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
|
14 |
00H00400161 - FLASQUE More informationQuantity required : 1 |
||||||
|
15 |
00H00400151 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
16 |
LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/9/img/63909.jpg)
17 |
00F01810411 - CLEF More informationQuantity required : 1 |
