Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

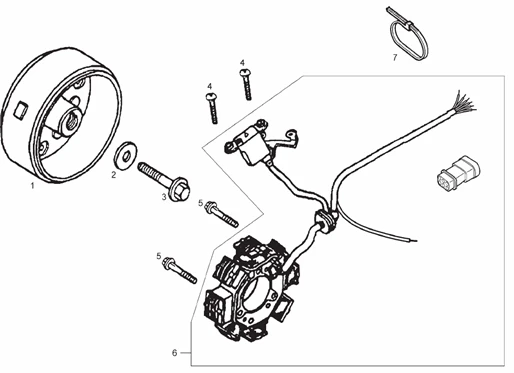

Vues éclatées : 24 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_24.png)
1 |
862831 - ROTOR More informationQuantity required : 1 |
||||||
|
2 |
862694 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
862875 - VIS More informationQuantity required : 1 |
||||||
|
4 |
862852 - VIS More informationQuantity required : 1 |
||||||
|
5 |
862867 - VIS More informationQuantity required : 1 |
||||||
|
6 |
862837 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
7 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
