Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

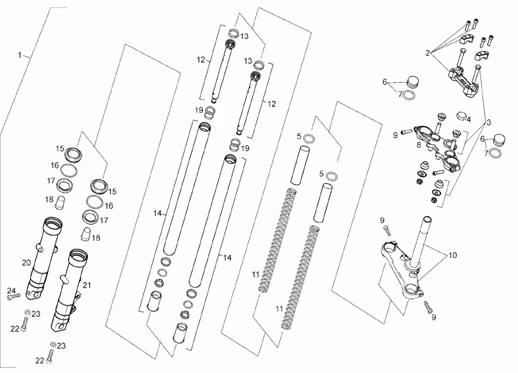

Vues éclatées : 2 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_2.png)
1 |
863407 - CTO.HORQU.CROSS CITY 125CC More informationQuantity required : 1 |
||||||
|
2 |
00H00204741 - COLLIER FIXATION GUIDON More informationQuantity required : 1 |
||||||
|
3 |
00H02001841 - COLLIER FIXATION More informationQuantity required : 1 |
||||||
|
4 |
864316 - ÉCROU More informationQuantity required : 1 |
||||||
|
5 |
863162 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
863148 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
863146 - JOINT DE JAUGE More informationQuantity required : 1 |
||||||
|
8 |
864293 - R-PLATINA SUP.CROSS CITY 125 More informationQuantity required : 1 |
||||||
|
9 |
863149 - VIS T. CREUSE M8X35 More informationQuantity required : 1 |
||||||
|
10 |
LOWER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -863151- More informationQuantity required : 1 |
||||||
|
11 |
864294 - RESSORT FOURCHE More informationQuantity required : 1 |
||||||
|
12 |
864290 - TUYAU More informationQuantity required : 1 |
||||||
|
13 |
863147 - JOINT DE JAUGE More informationQuantity required : 1 |
||||||
|
14 |
863407 - CTO.HORQU.CROSS CITY 125CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/1/5/img/70015.jpg)
15 |
FORK DUST COVER - "PIAGGIO GENUINE PART"(Ø37) GILERA 50 SMT, RCR 2006> -863160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/1/6/img/70016.jpg)
16 |
863161 - JOINT DE JAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/1/2/img/70012.jpg)
17 |
FORK OIL SEAL GASKET- (37X8X10.5) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -863157- More informationQuantity required : 1 |
||||||
|
18 |
863164 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
19 |
863163 - RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
20 |
864319 - FOURREAU D More informationQuantity required : 1 |
||||||
|
21 |
864292 - FOURREAU G More informationQuantity required : 1 |
||||||
|
22 |
863158 - VIS TARAUD More informationQuantity required : 1 |
||||||
|
23 |
863159 - RONDELLE More informationQuantity required : 1 |
||||||
|
24 |
863143 - BOULON TETE HEX. M8X40 More informationQuantity required : 1 |
