Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

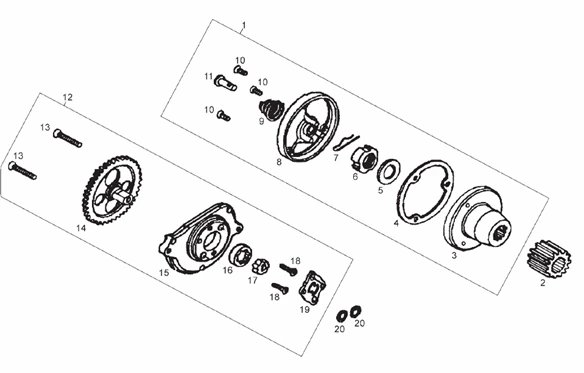

Vues éclatées : 23 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_23.png)
1 |
862743 - CTO. FILTRO ACEITE More informationQuantity required : 1 |
||||||
|
2 |
862814 - PIGNON More informationQuantity required : 1 |
||||||
|
3 |
862744 - CUERPO INTERIOR FILTRO More informationQuantity required : 1 |
||||||
|
4 |
862776 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
862683 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
862878 - ÉCROU More informationQuantity required : 1 |
||||||
|
7 |
862792 - GOUPILLE More informationQuantity required : 1 |
||||||
|
8 |
862842 - COUVERCLE More informationQuantity required : 1 |
||||||
|
9 |
862785 - RESSORT More informationQuantity required : 1 |
||||||
|
10 |
862854 - TORNILLO M5 X 12 More informationQuantity required : 1 |
||||||
|
11 |
862766 - PIVOT More informationQuantity required : 1 |
||||||
|
12 |
862702 - BOMBA ACEITE More informationQuantity required : 1 |
||||||
|
13 |
862868 - VIS More informationQuantity required : 1 |
||||||
|
14 |
862812 - PIÐËN BOMBA ACEITE More informationQuantity required : 1 |
||||||
|
15 |
862838 - COUVERCLE More informationQuantity required : 1 |
||||||
|
16 |
862832 - ROTOR INTERIEUR More informationQuantity required : 1 |
||||||
|
17 |
862833 - ROTOR EXTERIEUR More informationQuantity required : 1 |
||||||
|
18 |
862853 - VIS More informationQuantity required : 1 |
||||||
|
19 |
862745 - COUVERCLE More informationQuantity required : 1 |
||||||
|
20 |
862680 - BAGUE More informationQuantity required : 1 |
