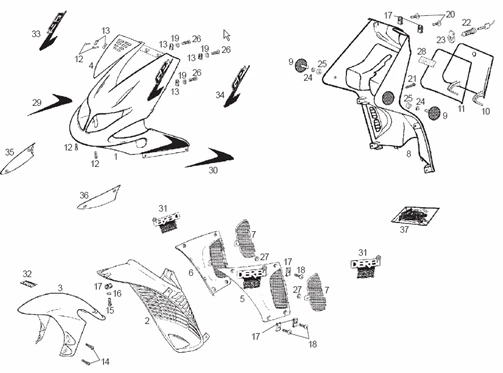

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	195208
	Maker reference	00G04946082C5

00G04946082C5 - R-SCTO.ESC.FR.PL.GP1 03

	P2R reference	195209
	Maker reference	00G04946081C5

00G04946081C5 - R-SCTO.ESC.FR.RJ.GP1 03

	P2R reference	194774
	Maker reference	00G00700342

00G00700342 - GARDEBOUE DROIT INT. GR.PART.

	P2R reference	195210
	Maker reference	00G00712028

00G00712028 - GUARD.DT.INF.R.GRANADO GP1

	P2R reference	195211
	Maker reference	00G00712029

00G00712029 - GUARD.DT.INF.PLATA A.GP1

	P2R reference	194777
	Maker reference	00G01500722

00G01500722 - ENJOLIVEUR

	P2R reference	195212
	Maker reference	00G04410832

00G04410832 - CTO.LATERAL RAD.IZ PL GP1 03

	P2R reference	195213
	Maker reference	00G044108315

00G044108315 - R-CTO.LATERAL RAD.IZ RJ GP1 03

	P2R reference	195214
	Maker reference	00G04410801

00G04410801 - CTO.LATERAL RAD.DR.RJ.GP1 03

	P2R reference	195215
	Maker reference	00G04410802

00G04410802 - CTO.LATERAL RAD.DR.PL.GP1 03

	P2R reference	194782
	Maker reference	00G03801301

00G03801301 - GRILLE LAT.RADIATEUR PREDATOR

	P2R reference	194783
	Maker reference	00G04901762

00G04901762 - INTER.ECU FR.

	P2R reference	194784
	Maker reference	00G04402751

00G04402751 - CATADIOPTRES LAT. JAUNE PRED.

	P2R reference	194785
	Maker reference	00G05901912

00G05901912 - COUVRE COFFRE PREDATOR

	P2R reference	187360
	Maker reference	00G05902621

00G05902621 - JOINT COUVERCLE COFFRE

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	72330
	Maker reference	AP8224470

AP8224470 - VIS

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64537
	Maker reference	00H01501701

00H01501701 - BOULON BOMBEE ALLEN 6M100X16

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	64277
	Maker reference	00H00600681

LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681

	P2R reference	187478
	Maker reference	00G00601141

00G00601141 - LEVIER FERMETURE SELLE

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference	188131
	Maker reference	00H00600991

00H00600991 - RONDELLE

	P2R reference	194014
	Maker reference	00G04900031

00G04900031 - ADHESIF

	P2R reference	195216
	Maker reference	00G04407821

00G04407821 - CALCA INF.DR.ESC.FR.GP1 ROJA

	P2R reference	195217
	Maker reference	00G04407822

00G04407822 - CALCA INF.DR.ESC.FR.GP1 PLATA

	P2R reference	195218
	Maker reference	00G04609561

00G04609561 - CALCA INF.IZ.ESC.FR.GP1 RJ

	P2R reference	195219
	Maker reference	00G04609562

00G04609562 - CALCA INF.IZ.ESC.FR.GP1 PLATA

	P2R reference	195220
	Maker reference	00G04913501

00G04913501 - CALCA DRD DERBI GP1 ROJA

	P2R reference	195221
	Maker reference	00G04913502

00G04913502 - CALCA DRD DERBI GP1 PLATA

	P2R reference	195222
	Maker reference	00G04625111

00G04625111 - CALCA DERBI GP1

	P2R reference	195223
	Maker reference	00G04603201

00G04603201 - CALCA SUP.DR.ESC.FR.ROJA

	P2R reference	195224
	Maker reference	00G04603202

00G04603202 - CALCA SUP.DR.ESC.FR.GP1 PLATA

	P2R reference	195225
	Maker reference	00G04603212

00G04603212 - CALCA SUP.IZ.ESC.FR.GP1 PLATA

	P2R reference	195226
	Maker reference	00G04603211

00G04603211 - CALCA SUP.IZ.ESC.FR.GP1 RJ

	P2R reference	195227
	Maker reference	00G01700611

00G01700611 - CTO. CRISTAL INTTE. DT. DR. US

	P2R reference	195228
	Maker reference	00G01700621

00G01700621 - CTO. CRISTAL INTTE. DT. IZ. US

	P2R reference	195229
	Maker reference	00G05147652

00G05147652 - R-JUEGO CALCAS GP1 03 PLATA/N

	P2R reference	195230
	Maker reference	00G05147651

00G05147651 - R-JUEGO CALCAS GP1 03 RJ/NEG
