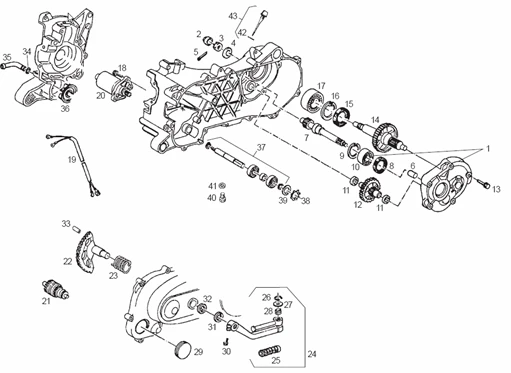

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	66739
	Maker reference	4874805

TRANSMISSION REDUCER COVER "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -4874805

	P2R reference	189650
	Maker reference	1C004746

1C004746 - CHAPEAU D'ARRET D'ECROU

	P2R reference	189650
	Maker reference	194423

1C004746 - CHAPEAU D'ARRET D'ECROU

	P2R reference	67035
	Maker reference	563728

NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728-

	P2R reference	65757
	Maker reference	159347

REAR WHEEL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -159347-

	P2R reference	65355
	Maker reference	0127895

REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 -

	P2R reference	66548
	Maker reference	478197

COMPENSATOR RING ON MAIN PULLEY AXLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTERS 50 CC -478197

	P2R reference	66583
	Maker reference	4795934

FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 50 ZIP 2000>, NRG 2000>, VESPA LX 2000>, PRIMAVERA 2013>, VESPA-S 2007>/GILERA 50 RUNNER, STALKER 2000>/APRILIA 50 SR H2O 2004>, MOJITO 2004> -4795934-

	P2R reference	66590
	Maker reference	480066

GASKET RING- CLUTCH PULLEY AXLE "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR,SPORT CITY ONE/VESPA LX, SPRINT, PRMIAVERA -480066-

	P2R reference	66604
	Maker reference	480953

480953 - CIRCLIPS

	P2R reference	66473
	Maker reference	435363

DRIVE SHAFT BEARING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -435363-

	P2R reference	66196
	Maker reference	288639

WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639-

	P2R reference	66593
	Maker reference	4802185

4802185 - AXE EX 487075 ET 480218

	P2R reference	151716
	Maker reference	1A011120

1A011120 - VIS

	P2R reference	66740
	Maker reference	4874845

REAR WHEEL AXLE "PIAGGIO GENUINE PART" PIAGGIO 50 NRG 2000>, TYPHOON 2000>, VESPA PRIMAVERA 2013>/GILERA 50 STALKER 2000>, RUNNER 200>/APRILIA 50 MOJITO 2004>, SR H2O 2004> -4874845 -

	P2R reference	66558
	Maker reference	478498

GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498-

	P2R reference	63825
	Maker reference	0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

	P2R reference	66459
	Maker reference	434735

DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735-

	P2R reference	65642
	Maker reference	0310915

031091 - VIS

	P2R reference	67858
	Maker reference	639856

639856 - FAISCEAU CABLES

	P2R reference	68531
	Maker reference	82530R

ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 50 2 STROKE -82530R

	P2R reference	66164
	Maker reference	82958R

STARTER MOTOR GEAR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -286174

	P2R reference	68967
	Maker reference	831458

KICKSTART SHAFT "PIAGGIO GENUINE PART" FLY 2 STROKE ET 4 STROKE, LYBERTY 2 STROKE ET 4 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE ET 4 STROKE/GILERA DNA, STALKER, RUNNER/APRILIA SR MOTARD, SPORT-CITY -831458-

	P2R reference	66223
	Maker reference	289495

RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495

	P2R reference	66168
	Maker reference	286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214

	P2R reference	66169
	Maker reference	286217

KICK STARTER RUBBER "PIAGGIO GENUINE PART" COMMON FOR SCOOTERS 50CC -286217-

	P2R reference	66185
	Maker reference	288041

288041 - CIRCLIPS

	P2R reference	66170
	Maker reference	286219

286219 - RONDELLE

	P2R reference	66168
	Maker reference	286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214

	P2R reference	66646
	Maker reference	483859

UPPER PLATE FIXING BUSH - ZIP "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC -483859

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	63814
	Maker reference	0064165

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

	P2R reference	66443
	Maker reference	433987

KICK STARTER SHAFT WASHER (16,3X23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

	P2R reference	66166
	Maker reference	286207

286207 - TAMPON

	P2R reference	66216
	Maker reference	289254

GASKET FOR WATER PUMP JUNCTION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O L.C. -289254

	P2R reference	70699
	Maker reference	878910

WATER PUMP OUTLET UNION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O LIQUIDE -878910-

	P2R reference	66748
	Maker reference	487730

WATER PUMP IMPELLER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 DNA, RUNNER -487730

	P2R reference	66919
	Maker reference	497406

WATER PUMP SHAFT "PIAGGIO GENUINE PART" 50 NRG 1998> ZIP SP 2006>/GILERA 50 RUNNER 1997>, DNA 1998>/APRILIA 50 SR H2O 1998> -497406-

	P2R reference	66226
	Maker reference	289553

STOP RING FOR WATER PUMP AXIS "PIAGGIO GENUINE PART" 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O -289553-

	P2R reference	66227
	Maker reference	289554

289554 - RONDELLE

	P2R reference	65737
	Maker reference	138345

OIL DRAIN CAP FOR TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50CC SCOOTERS 1998>2004 -138345

	P2R reference	66689
	Maker reference	485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

	P2R reference	68643
	Maker reference	827085

827085 - JOINT

	P2R reference	66619
	Maker reference	482500

482500 - JAUGE D'HUILE
