Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA) DERBI

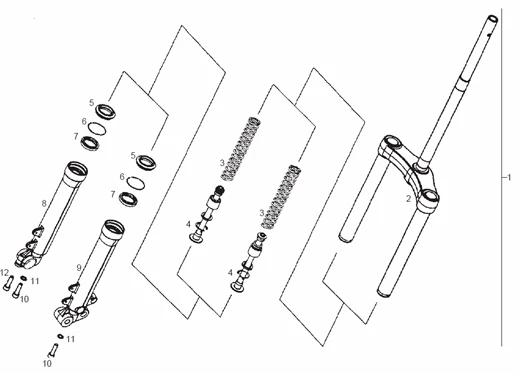

Vues éclatées : 2 FOURCHE AVANT
Fourche avant
Search
00G00210001 - CTO.HORQ.DIRECT.PRED.GP1

1
P2R reference P2R reference 195167
Maker reference Maker reference 00G00210001

00G00210001 - CTO.HORQ.DIRECT.PRED.GP1

More information

Quantity required : 1

00G00210001 - CTO.HORQ.DIRECT.PRED.GP1

2
P2R reference P2R reference 195167
Maker reference Maker reference 00G00210001

00G00210001 - CTO.HORQ.DIRECT.PRED.GP1

More information

Quantity required : 1

00G00205171 - R-MUELLE HORQUILLA GP1 PG

3
P2R reference P2R reference 195168
Maker reference Maker reference 00G00205171

00G00205171 - R-MUELLE HORQUILLA GP1 PG

More information

Quantity required : 1

00G00202531 - R-CTO.TUBO HIDRAUL.GP1 PG

4
P2R reference P2R reference 195169
Maker reference Maker reference 00G00202531

00G00202531 - R-CTO.TUBO HIDRAUL.GP1 PG

More information

Quantity required : 1

00G00204231 - GUARDAPOLVO HORQUILLA GP1 PG

5
P2R reference P2R reference 195170
Maker reference Maker reference 00G00204231

00G00204231 - GUARDAPOLVO HORQUILLA GP1 PG

More information

Quantity required : 1

00G00201701 - R-ANILLO RETENC.ACEITE GP1 PG

6
P2R reference P2R reference 195171
Maker reference Maker reference 00G00201701

00G00201701 - R-ANILLO RETENC.ACEITE GP1 PG

More information

Quantity required : 1

00G00203471 - R-RETEN PNA.HORQ.GP1 PG

7
P2R reference P2R reference 195172
Maker reference Maker reference 00G00203471

00G00203471 - R-RETEN PNA.HORQ.GP1 PG

More information

Quantity required : 1

00G00203131 - PIERNA DR.HORQUILLA GP1 PG

8
P2R reference P2R reference 195173
Maker reference Maker reference 00G00203131

00G00203131 - PIERNA DR.HORQUILLA GP1 PG

More information

Quantity required : 1

00G00203121 - PIERNA IZ.HORQUILLA GP1 PG

9
P2R reference P2R reference 195174
Maker reference Maker reference 00G00203121

00G00203121 - PIERNA IZ.HORQUILLA GP1 PG

More information

Quantity required : 1

00000004830 - BOULON TETE HEX.8M125X30 D933

10
P2R reference P2R reference 63576
Maker reference Maker reference 000000048305

00000004830 - BOULON TETE HEX.8M125X30 D933

More information

Quantity required : 1

00000031080 - ROND. PLATE MECANISEE

11
P2R reference P2R reference 63596
Maker reference Maker reference 000000310805

00000031080 - ROND. PLATE MECANISEE

More information

Quantity required : 1

SCREW - FOR HEADLIGHT FASTENING (6x100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

12
P2R reference P2R reference 66547
Maker reference Maker reference 478171

SCREW - FOR HEADLIGHT FASTENING (6X100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

More information

Quantity required : 1
