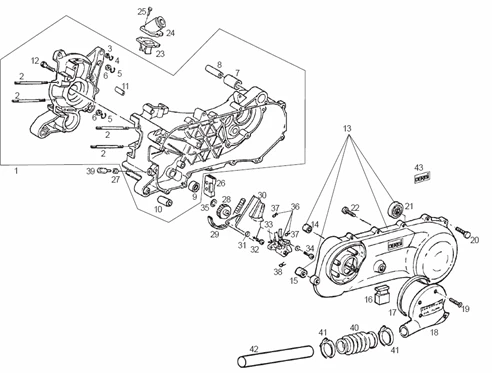

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	73136
	Maker reference	CM1273235

CM1273235 - CARTER

	P2R reference	70652
	Maker reference	1A003633R

CYLINDER STUD BOLT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, NRG/ GILERA 50 STALKER, RUNNER 2 STROKE/ APRILIA SR, SR MOTARD 2 STROKE -1A003633R-

	P2R reference	65453
	Maker reference	0200065

020006 - ECROU

	P2R reference	66181
	Maker reference	287223

287223 - CIRCLIPS

	P2R reference	65698
	Maker reference	113533

113533 - BAGUE

	P2R reference	65455
	Maker reference	0200085

NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008-

	P2R reference	66066
	Maker reference	267823

SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823-

	P2R reference	66054
	Maker reference	266625

SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625-

	P2R reference	66469
	Maker reference	4352035

WATER PUMP GASKET "PIAGGIO GENUINE PART" FOR ALL 50CC L.C. -

	P2R reference	66056
	Maker reference	266773

SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -266773-

	P2R reference	72696
	Maker reference	B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

	P2R reference	72769
	Maker reference	B017632

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632-

	P2R reference	68756
	Maker reference	8284535

TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, VESPA PRIMAVERA, SPRINT/GILERA 50 RUNNER/APRILIA 50 SR, MOJITO -8284535-

	P2R reference	66167
	Maker reference	286209

KICK STARTER BUSH "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE/GILERA 50 STALKER, RUNNER -286209-

	P2R reference	66417
	Maker reference	431860

BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

	P2R reference	66537
	Maker reference	463872

463872 - TAMPON BEQUILLE

	P2R reference	66618
	Maker reference	482432

482432 - JOINT

	P2R reference	66617
	Maker reference	482404

VARIATOR AIRFLOW COVER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -482404

	P2R reference	66471
	Maker reference	435295

SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295-

	P2R reference	66367
	Maker reference	414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838

	P2R reference	68524
	Maker reference	82521R

BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R

	P2R reference	66376
	Maker reference	430264

430264 - VIS

	P2R reference	68692
	Maker reference	82775R

REED VALVE "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE (FRAME N- RECOMMENDED) -82775R

	P2R reference	152746
	Maker reference	1A008824

INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824-

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66178
	Maker reference	287021

287021 - PASSE CABLES

	P2R reference	65461
	Maker reference	0201065

020106 - ECROU S02010600

	P2R reference	66217
	Maker reference	289262

OIL PUMP GEAR "PIAGGIO GENUINE PART" GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG MOTEUR H2O -289262-

	P2R reference	66161
	Maker reference	286162

OIL PUMP BELT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -286162-

	P2R reference	66162
	Maker reference	286163

OIL PUMP PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -286163-

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	65399
	Maker reference	0158565

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

	P2R reference	65695
	Maker reference	104296

104296 - RESSORT

	P2R reference	65383
	Maker reference	0155855

SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585-

	P2R reference	66179
	Maker reference	287073

WATER PUMP SHIM WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 50 CC 2 STROKE 287073-

	P2R reference	68580
	Maker reference	82605R

OIL PUMP "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000> /APRILIA 50 SR H2O 2003>/GILERA 50 STALKER, RUNNER, DNA 2000> -82605R-

	P2R reference	66705
	Maker reference	486149

486149 - RESSORT

	P2R reference	66220
	Maker reference	289309

289309 - COLLIER

	P2R reference	65745
	Maker reference	146197

SCREW - FOR OIL PUMP CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -146197-

	P2R reference	194842
	Maker reference	00G03600601

00G03600601 - FUELLE ENTR.AIRE VARIAD.GP1

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	194843
	Maker reference	00G03600501

00G03600501 - TUBO RIGIDO ENT.VARIAD.GP1

	P2R reference	195270
	Maker reference	00G04407991

00G04407991 - ADHESIF
