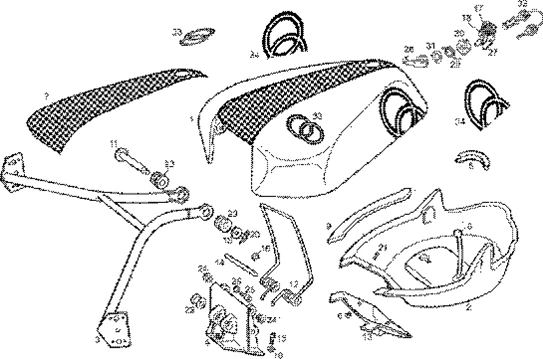

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference	65058
	Maker reference	00H06807591

00H06807591 - COUVERTURE RESERVOIR GIL REPL

	P2R reference
	Maker reference	00H06300721C

PORTE CASQUE GPR 50

	P2R reference	64941
	Maker reference	00H04900811

00H04900811 - S/ENSEMBLE SUPPORT PARE-BRISE

	P2R reference	64526
	Maker reference	00H01500271

00H01500271 - CHARNIERE ARTICULATION COUVERCLE

	P2R reference
	Maker reference	ODN00H01503051

BUTE ARR.PORTE CASQUE

	P2R reference	64604
	Maker reference	00H01800561

00H01800561 - ECROU FIXATION PORTE-CASQUE GP

	P2R reference	64950
	Maker reference	00H04901761

00H04901761 - ENJOLIVEUR SUPERIEUR COUVERCLE

	P2R reference
	Maker reference	00H06300471

ANSE CENTRALE GPR-50"R"

	P2R reference
	Maker reference	ODN00H06300551

PROFIL PORTE-CASQUE

	P2R reference	65037
	Maker reference	00H06301281

00H06301281 - DOUILLE FIXATION CHARNIERE GPR

	P2R reference
	Maker reference	00H06302751

AXE ARTICULATION COUVERCLE CASQUE

	P2R reference	65041
	Maker reference	00H06302761

00H06302761 - RESSORT

	P2R reference	65053
	Maker reference	00H06800531

00H06800531 - COUVERCLE INFERIEUR PORTE-CASQ

	P2R reference	65054
	Maker reference	00H06800561

00H06800561 - AXE CHARNIERE PORTE-CASQUE GPR

	P2R reference
	Maker reference	ODN00004061600

VIS

	P2R reference	63736
	Maker reference	000470304005

CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400-

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference
	Maker reference	00G04900321

RES.FIX.MARCHEPIED PASSAGER VA

	P2R reference	63703
	Maker reference	000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000-

	P2R reference	65012
	Maker reference	00H05900711

00H05900711 - SILENTBLOC FIXATION SUPPORT CA

	P2R reference	65051
	Maker reference	00H06800461

SILENTBLOC FOR TAIL LIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06800461

	P2R reference	65055
	Maker reference	00H06800571

00H06800571 - DOUILLE FIXATION CARENAGE GRP-

	P2R reference	63571
	Maker reference	000000046205

00000004620 - VIS T. CREUSE 6M100X20.

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	65050
	Maker reference	00H06800391

00H06800391 - POSITIONNEUR SERRURE GPR"R".

	P2R reference
	Maker reference	00H06304141

CAME FERMETURE

	P2R reference	65036
	Maker reference	00H06301201

00H06301201 - RESSORT

	P2R reference	64278
	Maker reference	00H00600901

00H00600901 - ECROU M19X1

	P2R reference
	Maker reference	ODN00H00600931

RONDELLE

	P2R reference	65020
	Maker reference	00H06001241

00H06001241 - SERRURE COFFRE A CASQUE GPR 50

	P2R reference
	Maker reference	00H04902501

ADHESIF

	P2R reference	64256
	Maker reference	00H00412111

00H00412111 - DECALCOMANIE ARR.DROITE GIL.R

	P2R reference
	Maker reference	00H00405121

DECALCO POST.SX

	P2R reference
	Maker reference	ODN00H06327731

ADHESIF
