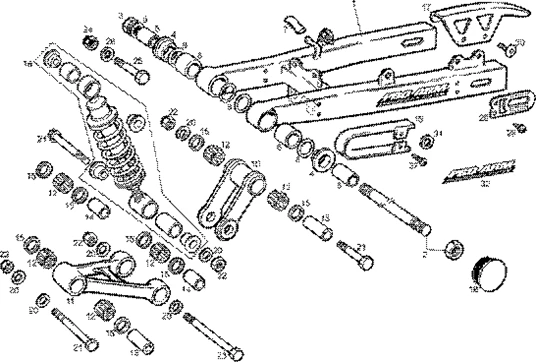

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference
	Maker reference	ODN00H00305972

BRAS OSCILLANT

	P2R reference	64213
	Maker reference	00H00300411

00H00300411 - S/ENSEMBLE AXE BASCULANT GPR-7

	P2R reference	64214
	Maker reference	00H00300672

NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672-

	P2R reference	64212
	Maker reference	00H00300231

00H00300231 - DOUILLE GUIDE BRAS OSCILLANT.

	P2R reference
	Maker reference	00H00301651

DOUILLE BUTöE BASCULANT GPR-50

	P2R reference	64223
	Maker reference	00H00302071

00H00302071 - DOUILLE ARTICULATION BRAS BASC

	P2R reference
	Maker reference	00G01800841

FOURREAU PROTECT.BRIDES CHAS.H

	P2R reference
	Maker reference	00H04500131

ANNEAU TORIQUE BOUTON DOUILLE B

	P2R reference	63730
	Maker reference	000320150005

FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000-

	P2R reference	64219
	Maker reference	00H00301801

00H00301801 - S/ENSEMBLE BIELLE ARTICULATION

	P2R reference	70040
	Maker reference	863989

863989 - S/ENSEMBLE BIELLE TRIANGLE ART

	P2R reference	64218
	Maker reference	00H00301701

ROLLER BEARING FOR REAR SUSPENSION LINK "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00301701-

	P2R reference	64220
	Maker reference	00H00301851

REAR SUSPENSION BUSH "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00301851

	P2R reference	64221
	Maker reference	00H00301861

00H00301861 - DOUILLE INTVRIEURE BIELLE ARTI

	P2R reference	64222
	Maker reference	00H00301871

GASKET FOR BEARING/REAR SUSPENSION LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301871-

	P2R reference
	Maker reference	00H01513191

AMORTISSEUR GPR 50 (SB)

	P2R reference	64552
	Maker reference	00H01506181

00H01506181 - COUVRE CHA?NES GPR-50"R"

	P2R reference
	Maker reference	00H01800751

BOUCHON LOGEMENT AXE BASCULANT

	P2R reference	64946
	Maker reference	00H04901361

00H04901361 - GUIDE SUPERIEURE CHAINE GPR-50

	P2R reference	64527
	Maker reference	00H01500421

00H01500421 - RONDELLE FIXATION INFERIEUR AM

	P2R reference	65052
	Maker reference	00H06800471

00H06800471 - VIS FIXATION BIELLE AMORTISSEUR

	P2R reference	63716
	Maker reference	000231120005

NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000-

	P2R reference	64215
	Maker reference	00H00300891

SCREW - FOR REAR SHOCK ABSORBER (12M17) "PIAGGIO GENUINE PARTS" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00300891

	P2R reference
	Maker reference	00H01500411

ECROU FIXATION AMORTISSEUR GPR

	P2R reference
	Maker reference	00H01800901

BOUL.SERRAGE SUPPORT AMORTISSE

	P2R reference
	Maker reference	ODN00000031100

RONDELLE

	P2R reference	63687
	Maker reference	000111413005

SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300-

	P2R reference
	Maker reference	ODN00H01301241

PLAQUE

	P2R reference	65033
	Maker reference	00H06300861

SCREW - FOR FAIRINGS FASTENING 6X14 "PIAGGIO GENUINE PART" GILERA 50 GPR -00H06300861

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181
