Vehicle Exploded View - GILERA GPR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

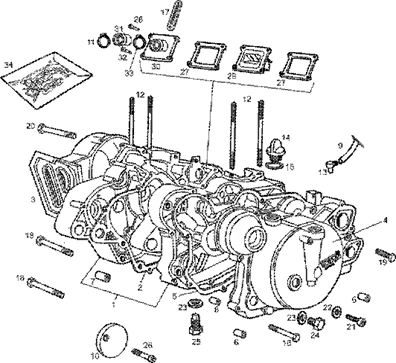

Moteur : T1 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T1.PNG)
1 |
00H03016631 - CARTERS GPR GILERA REPLICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/5/img/64745.jpg)
2 |
CENTRAL CRANKCASE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1997>2003 -00H03000031 More informationQuantity required : 1 |
||||||
|
3 |
CARTER GRIS |
||||||
|
4 |
00H03009881 - SCTO.TAPA CART.DR.G.ZIRC.GILE. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/7/img/64747.jpg)
5 |
GASKET FOR CLUTCH HOUSING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H03000141 More informationQuantity required : 1 |
||||||
|
6 |
CENTRAGE CARTER |
||||||
|
7 |
00H03010361 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
8 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847241 More informationQuantity required : 1 |
||||||
|
9 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
00H06400161 - PLAQUE PROTECTION HUILE MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/3/img/69463.jpg)
11 |
INTAKE MANIFOLD CLAMP "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>/GILERA 50 SMT 2003>, RCR 2003> -847096 More informationQuantity required : 1 |
||||||
|
12 |
00003130050 - GOUJON DE FIXE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/6/img/69416.jpg)
13 |
OIL BREATHER TUBE JOINT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847024 More informationQuantity required : 1 |
||||||
|
14 |
BOUCHON REMP.HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
15 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/6/7/img/64067.jpg)
16 |
SCREW - FOR CRANKCASE (M6 100X40) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03002091- More informationQuantity required : 1 |
||||||
|
17 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/6/img/64746.jpg)
18 |
SCREW - FOR CRANKCASE (6X50) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00H03000091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
19 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
20 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
21 |
SCREW - MULTI PURPOSE M6X10 "PIAGGIO GENUINE PART" -319446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
22 |
847239 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/6/img/69506.jpg)
23 |
O'RING GASKET FOR OIL DRAIN PLUG "PIAGGIO GENUINE PART" 350 BEVERLY, X10/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/5/8/img/204758.jpg)
24 |
1A021939 - VIS TÃ-TE CYLINDRIQUE Ã SIX PANS CREUX More informationQuantity required : 1 |
||||||
|
24 |
1A021939 - VIS TÃ-TE CYLINDRIQUE Ã SIX PANS CREUX More informationQuantity required : 1 |
||||||
|
25 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
26 |
969296 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/1/img/69461.jpg)
27 |
REED VALVE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
28 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
||||||
|
28 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/7/img/149117.jpg)
29 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
|
29 |
1A003630 - SOUPAPE LAMELLES CPL More informationQuantity required : 1 |
||||||
|
30 |
00H02506061 - PIPE D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/9/img/149169.jpg)
30 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
|
30 |
1A010664 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/5/2/img/70352.jpg)
31 |
JOINING SLEEVE- FROM INTAKE MANIFOLD TO CARB "PIAGGIO GENUINE PART" 50 A BOITE APRILIA 50 RS4 2011>/GILERA 50 SMT 2003>, RCR 2003> -871319 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
32 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
32 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
34 |
00H05205481 - POCHETTE DE JOINTS More informationQuantity required : 1 |
