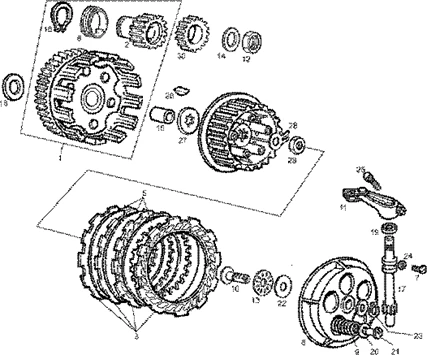

Moteur : T3 GR.EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T3.PNG)
1 |
00H03605521 - CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
2 |
00H02610381 - PIGNON MOTEUR Z-22. 74/80CC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
3 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
4 |
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/6/img/69426.jpg)
5 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX -847043 More informationQuantity required : 1 |
||||||
|
6 |
00H01600111 - VIS COMMANDE COMPTE-TOURS 50/7 More informationQuantity required : 1 |
||||||
|
7 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/9/img/69429.jpg)
8 |
CLUTCH COLLAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50-125 RS4 2011>, 50 SX, RX 2006>, 125 SX, RX 2018> -847046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
9 |
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047 More informationQuantity required : 1 |
||||||
|
10 |
00H02600271 - CREMAILLETE D,EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/0/img/73270.jpg)
11 |
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/7/img/64717.jpg)
12 |
NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
13 |
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/5/img/69515.jpg)
14 |
BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
15 |
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643 More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
00H02610311 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
18 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
19 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
20 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
|
21 |
00012053500 - VIS 5M80X35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
22 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
23 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
24 |
00H03800441 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
25 |
018639 - VIS More informationQuantity required : 1 |
||||||
|
26 |
CLAVETTE PIGNON MOT. D-6888. 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/1/6/img/187216.jpg)
27 |
1A009075 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
27 |
1A009075 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
28 |
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
29 |
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221 More informationQuantity required : 1 |
||||||
|
30 |
00H03800181 - PIGNON More informationQuantity required : 1 |
