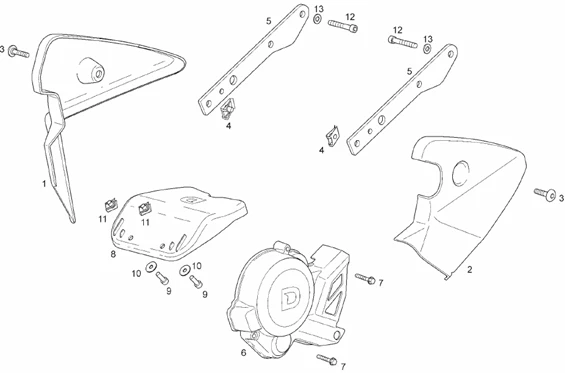

Vehicle Exploded View - DERBI GPR 50 2T E2 2009-2010 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 28 CARROSSERIE
Carrosserie
Search
865931 - COUVERCLE D

1
P2R reference P2R reference 193206
Maker reference Maker reference 865931

865931 - COUVERCLE D

More information

Quantity required : 1

865932 - COUVERCLE G

2
P2R reference P2R reference 193207
Maker reference Maker reference 865932

865932 - COUVERCLE G

More information

Quantity required : 1

SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

3
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

4
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

865778A - CARTELA SOPTE.CULATA C/CATAF.GPR50 09

5
P2R reference P2R reference 70143
Maker reference Maker reference 865778A

865778A - CARTELA SOPTE.CULATA C/CATAF.GPR50 09

More information

Quantity required : 1

IGNITION COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H03007241-

6
P2R reference P2R reference 64750
Maker reference Maker reference 00H03007241

IGNITION COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H03007241-

More information

Quantity required : 1

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

7
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

More information

Quantity required : 1

866644 - TAPA PROTEC.ENTRADA AGUA GPR50 09

8
P2R reference P2R reference 70214
Maker reference Maker reference 866644

866644 - TAPA PROTEC.ENTRADA AGUA GPR50 09

More information

Quantity required : 1

847227 - BOULON

9
P2R reference P2R reference 69497
Maker reference Maker reference 847227

847227 - BOULON

More information

Quantity required : 1

00H03800722 - RONDELLE

10
P2R reference P2R reference 64840
Maker reference Maker reference 00H03800722

00H03800722 - RONDELLE

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

11
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

864850 - VIS

12
P2R reference P2R reference 192945
Maker reference Maker reference 864850

864850 - VIS

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

13
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

More information

Quantity required : 1
