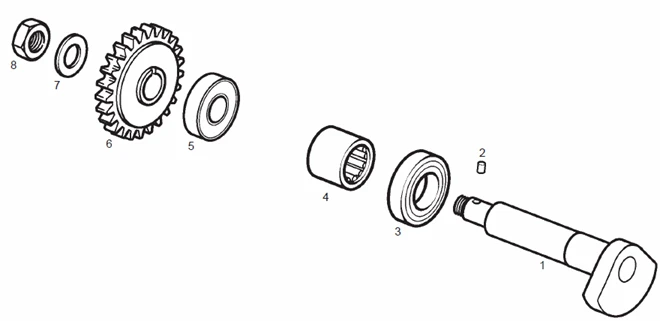

Moteur : 21 CONTREPOIDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1115/GPR_50_2T_E2_2009-2010_(EMEA)_21.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/3/img/69433.jpg)
1 |
BALANCE COUNTERSHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS 2006>2010, RS4 2011> -847050 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/6/img/69486.jpg)
2 |
ROLLER FOR GEARBOX CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/1/img/69411.jpg)
3 |
GASKET RING- BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/9/img/69409.jpg)
4 |
ROLLER BEARING FOR BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>, RS-4 2010> -847013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
5 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/2/img/69432.jpg)
6 |
BALANCE SHAFT GEAR "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -8470491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/5/img/69515.jpg)
7 |
BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/4/img/69514.jpg)
8 |
NUT - FOR BALANCING SHAFT FASTENING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, 125 RX, SX -847275 More informationQuantity required : 1 |
