Vehicle Exploded View - DERBI GPR 50 2T E2 2009-2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

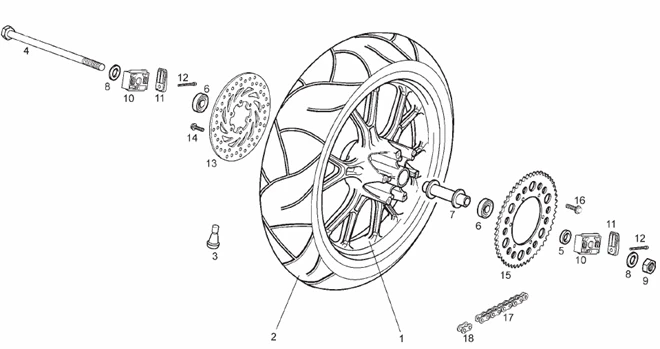

Suspensions - roues : 12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1115/GPR_50_2T_E2_2009-2010_(EMEA)_12.png)
1 |
00H01310381 - JANTE ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
899860 - PNEU AR SAVATECH 130/70X17" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/0/img/70140.jpg)
4 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO 2011> -865681- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/2/img/64432.jpg)
5 |
00H01203291 - ENTRETOISE ROUE ARRIERE COTE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
6 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/0/img/64500.jpg)
7 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 125 TUONO 2017> -00H01308091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/0/img/70190.jpg)
8 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT AR/DERBI 50 SENDA (Ø 15 MM) -866536- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
9 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/5/img/64475.jpg)
10 |
WHEEL TENSIONER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX FACTORY, RX FACTORY 2018>/GILERA 50 SMT RACING 2011> -00H01303171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/1/img/64461.jpg)
11 |
CHAIN TENSIONER PLATE "PIAGGIO GENUINE PART" 50-125 APRILIA RS4 2011>/GILERA 50 SMT RACING 2011> -00H01301471- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/2/img/64462.jpg)
12 |
SCREW - FOR CHAIN TENSIONER (8X50) "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00H01301491- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154.jpg)
13 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 SX, RX 2011>, 50-125 RS4 2011> ARRIERE (Ø218 - 6 HOLES) -866115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
14 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
15 |
REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2011>, SX 2014>/GILERA 50 SMT 2011> -86182R- More informationQuantity required : 1 |
||||||
|
16 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
17 |
CHAIN 1/2" X 1/4" - 130 LINKS "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2006>, SX 2006>/GILERA 50 SMT 2003>, RCR 2003> -B046219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
18 |
00H01501212 - ATTACHE RAPIDE More informationQuantity required : 1 |
