Vehicle Exploded View - DERBI GPR 50 2T E2 2009-2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

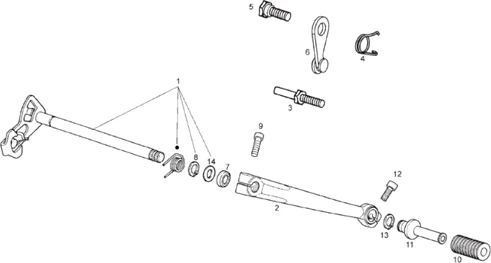

Moteur : 19 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1115/GPR_50_2T_E2_2009-2010_(EMEA)_19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/4/img/146184.jpg)
1 |
GEARBOX SELECTOR SHAFT "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011>2017, 125 TUONO 2017>, RX, SX 2018> -1A006754- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/6/5/img/70165.jpg)
2 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 50 RS 2011> -866162- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
3 |
SCREW - FOR GEARBOX SELECTOR RETURN SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -B017981- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
4 |
GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" GILERA/APRILIA -1A010665- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/2/img/151722.jpg)
5 |
SCREW FOR BRAKE PADS/GEARBOX SELECTOR AXLE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -1A010690- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
6 |
GEAR ARREST LEVER (INTERNAL) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -1A010685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
7 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
8 |
005970 - BAGUE S00597000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
10 |
GEARBOX SELECTOR RUBBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA -AP8220189- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
11 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT/GEAR SELECTOR PIN FOR APRILIA MOTORBIKES -AP8121221 More informationQuantity required : 1 |
||||||
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
13 |
AP8150462 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
14 |
GEARBOX SELECTOR AXLE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847228 More informationQuantity required : 1 |
