Vehicle Exploded View - APRILIA MINI RX 50 Experience 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

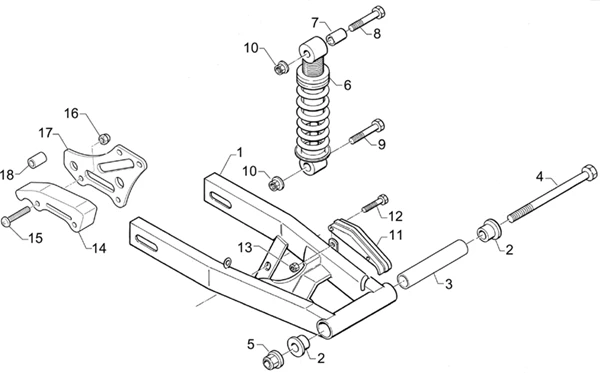

Chassis : 28.10 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/299/Mini_RX_Experience_2003_28.10.PNG)
1 |
Fourche arriere |
||||||
|
2 |
AP8350381 - BOCCOLA More informationQuantity required : 2 |
||||||
|
3 |
Entretoise |
||||||
|
4 |
Vis |
||||||
|
5 |
Écrou |
||||||
|
6 |
Amortisseur |
||||||
|
7 |
Entretoise |
||||||
|
8 |
Vis |
||||||
|
9 |
Vis |
||||||
|
10 |
Écrou |
||||||
|
11 |
Galet guide-chaîne |
||||||
|
12 |
AP8350293 - VITE More informationQuantity required : 1 |
||||||
|
13 |
Écrou |
||||||
|
14 |
Coautchouc pour support |
||||||
|
15 |
Vis |
||||||
|
16 |
Écrou |
||||||
|
17 |
Plaque |
||||||
|
18 |
Entretoise |
