Vehicle Exploded View - APRILIA MINI RX 50 Experience 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

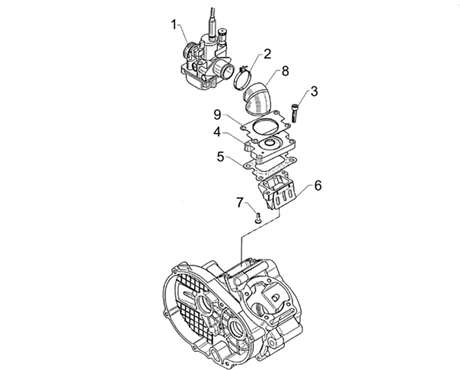

Moteur : 29.05 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/299/Mini_RX_Experience_2003_29.05.PNG)
1 |
Carburateur cpl. |
||||||
|
2 |
Collier |
||||||
|
3 |
Vis |
||||||
|
4 |
AP8350085 - COLLETTORE ASPIRAZIONE More informationQuantity required : 1 |
||||||
|
5 |
AP8350129 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
6 |
AP8350192 - VALVOLA More informationQuantity required : 1 |
||||||
|
7 |
Vis |
||||||
|
8 |
AP8350147 - MANICOTTO More informationQuantity required : 1 |
||||||
|
9 |
Plaquette |
