Vehicle Exploded View - APRILIA MINI RX 50 Experience 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

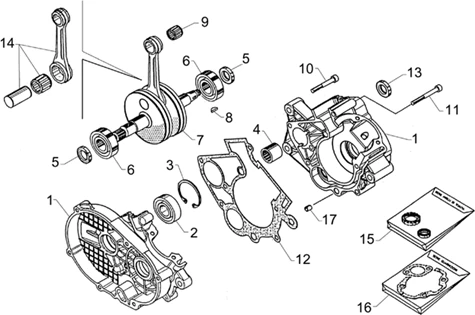

Moteur : 29.01 CARTER-EMBIELLAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/299/Mini_RX_Experience_2003_29.01.PNG)
1 |
Carter - couple |
||||||
|
2 |
Roulement |
||||||
|
3 |
Anneau élastique |
||||||
|
4 |
Roulement étanche |
||||||
|
5 |
Bague d'étanchéité |
||||||
|
6 |
Roulement |
||||||
|
7 |
Vilebrequin |
||||||
|
8 |
Clé volant |
||||||
|
9 |
Cage |
||||||
|
10 |
Vis |
||||||
|
11 |
Vis |
||||||
|
12 |
Joint |
||||||
|
13 |
AP8350077 - ANELLO TENUTA More informationQuantity required : 1 |
||||||
|
14 |
Bielle cpl. |
||||||
|
15 |
Série bagues d'étanchéité |
||||||
|
16 |
Jeu de joints |
||||||
|
17 |
Goupille |
