Vehicle Exploded View - APRILIA MINI RX 50 Experience 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

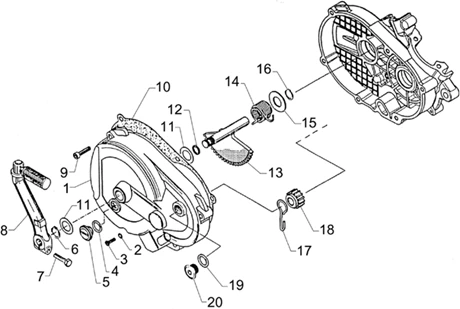

Moteur : 29.02 LEVIER M/M CPL.-COUV.EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/299/Mini_RX_Experience_2003_29.02.PNG)
1 |
Couvercle embrayage |
||||||
|
2 |
Garniture |
||||||
|
3 |
Vis |
||||||
|
4 |
Joint |
||||||
|
5 |
Bouchon |
||||||
|
6 |
Bague |
||||||
|
7 |
Vis |
||||||
|
8 |
AP8350136 - LEVA More informationQuantity required : 1 |
||||||
|
9 |
Vis |
||||||
|
10 |
Joint |
||||||
|
11 |
Rondelle |
||||||
|
12 |
Bague |
||||||
|
13 |
Arbre démarrage cpl |
||||||
|
14 |
Ressort |
||||||
|
15 |
Rondelle |
||||||
|
16 |
AP8350070 - ANELLO More informationQuantity required : 1 |
||||||
|
17 |
Ressort |
||||||
|
18 |
Engrenage |
||||||
|
19 |
Joint |
||||||
|
20 |
Bouchon |
