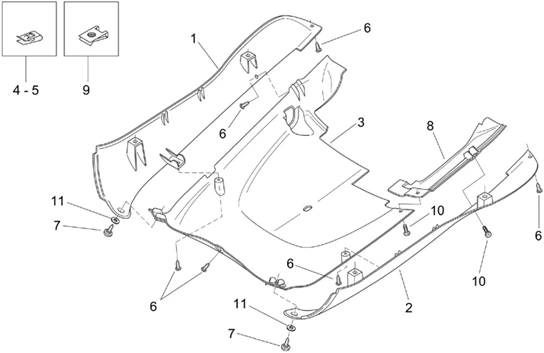

Vehicle Exploded View - APRILIA MOJITO 125 1999-2001

Chassis : 28.10 CARROS. CENT. - SOUS-REP-PIEDS

Carros. cent. - Sous-rep-pieds

Search

1

	P2R reference
	Maker reference	AP8248970

Flanc s-pl.d.p.bleu;

1

	P2R reference
	Maker reference	AP8249039

Flanc ss-rep-p.D orange;

1

	P2R reference
	Maker reference	AP8249060

Flanc ss-rep-p.D bleu;

1

	P2R reference	58727
	Maker reference	AP8249081

AP8249081 - FLANC SS-REP-P.D NOIR;

More information

Quantity required : 1

1

	P2R reference
	Maker reference	AP8249214

Flanc ss-rep-p.D noir;

1

	P2R reference
	Maker reference	AP8249395

Flanc ss-rep-p.D rouge c.;

1

	P2R reference
	Maker reference	AP8258117

Flanc ss-rep-D bleu;

1

	P2R reference
	Maker reference	AP8139882

Flanc ss-rep-p.D vert a.;

1

	P2R reference	50627
	Maker reference	AP8149396

AP8149396 - FLANC SS-REP-D BLEU;

More information

Quantity required : 1

1

	P2R reference
	Maker reference	AP8149401

Flanc ss-rep-p.D vert;

1

	P2R reference	50628
	Maker reference	AP8149411

AP8149411 - FLANC SS-REP-D NOIR;

More information

Quantity required : 1

1

	P2R reference
	Maker reference	AP8149416

Flanc ss-rep-D orange;

1

	P2R reference	50637
	Maker reference	AP8149426

AP8149426 - FLANC SS-REP-D BLEU;

More information

Quantity required : 1

2

	P2R reference
	Maker reference	AP8139883

Flanc ss-rep-p.G vert a.;

2

	P2R reference
	Maker reference	AP8149397

Flanc ss-rep-p.G bleu;

2

	P2R reference
	Maker reference	AP8149402

Flanc ss-rep-p.G vert a.;

2

	P2R reference
	Maker reference	AP8249396

Flanc ss-rep-p.G rouge c.;

2

	P2R reference	50629
	Maker reference	AP8149412

AP8149412 - FLANC SS-REP-P.G NOIR;

More information

Quantity required : 1

2

	P2R reference	50631
	Maker reference	AP8149417

AP8149417 - FLANC SS-REP-P.G ORANGE;

More information

Quantity required : 1

2

	P2R reference	50638
	Maker reference	AP8149427

AP8149427 - FLANC S-PL.G.P.BLEU;

More information

Quantity required : 1

2

	P2R reference
	Maker reference	AP8248971

Flanc s-pl.g.p.bleu;

2

	P2R reference
	Maker reference	AP8249040

Flanc ss-rep-p.G orange;

2

	P2R reference
	Maker reference	AP8249061

Flanc ss-rep-p.G bleu;

2

	P2R reference	58728
	Maker reference	AP8249082

AP8249082 - FLANC SS-REP-P.G NOIR;

More information

Quantity required : 1

2

	P2R reference
	Maker reference	AP8249215

Flanc ss-rep-p.G noir;

2

	P2R reference
	Maker reference	AP8258118

Flanc s-pl.g.p.bleu;

3

	P2R reference	49437
	Maker reference	AP8139986

AP8139986 - PROT.INF.REP-P. NOIRE;

More information

Quantity required : 1

4

	P2R reference	72157
	Maker reference	AP8202449

AP8202449 - CLIP X VITE AUTOFIL.D.4,2

More information

Quantity required : 4

5

	P2R reference	72143
	Maker reference	AP8201763

AP8201763 - CLIP POUR VIS TARAUD

More information

Quantity required : 6

6

	P2R reference	71975
	Maker reference	AP8152351

AP8152351 - VIS

More information

Quantity required : 6

7

	P2R reference	71881
	Maker reference	AP8150425

AP8150425 - VIS

More information

Quantity required : 2

8

	P2R reference	50295
	Maker reference	AP8148262

AP8148262 - CACHE BEQUILLE G;

More information

Quantity required : 1

9

	P2R reference	71177
	Maker reference	AP8102381

AP8102381 - CLIP

More information

Quantity required : 2

10

	P2R reference	50865
	Maker reference	AP8150359

AP8150359 - VIS

More information

Quantity required : 2

11

	P2R reference	71873
	Maker reference	AP8150382

AP8150382 - RONDELLE

More information

Quantity required : 2
