Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

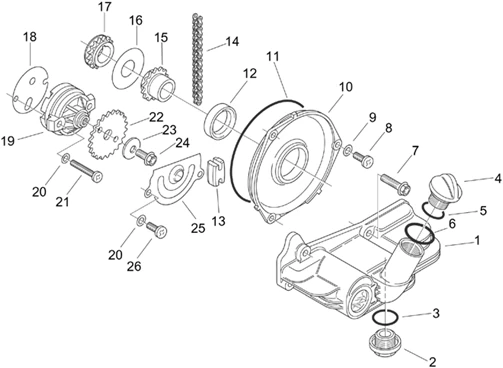

Moteur : 29.48 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/1/img/69331.jpg)
1 |
MOTOR OIL CUP "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR ALL SCOOTER 50CC - 4 STROKE -844871 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/0/img/66500.jpg)
2 |
436692 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
3 |
OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/5/img/69325.jpg)
4 |
OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 4 STROKE 2011>/ PIAGGIO 50 TYPHOON, FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, SPRINT, PRIMAVERA, S 4 STROKE 2006> -844721- More informationQuantity required : 1 |
||||||
5 |
Joint torique |
||||||
|
6 |
Joint |
||||||
|
7 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
8 |
1A003109 - VIS M5X16 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
9 |
006965 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/5/img/66555.jpg)
10 |
TIMING SYSTEM COVER (WITH GASKET) "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, VESPA PRIMAVERA 4 STROKE, VESPA LX 4 STROKE -478324- More informationQuantity required : 1 |
||||||
|
11 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
12 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGO - COMMON FOR SCOOTER 50CC 4 STROKE -2879633 More informationQuantity required : 1 |
||||||
|
13 |
Tampon chaîne pompe huile |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/4/img/66454.jpg)
14 |
434447 - CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/8/img/69068.jpg)
15 |
OIL PUMP PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50CC 4 STROKE -833495 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/0/img/66380.jpg)
16 |
430535 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
434442 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/4/img/66504.jpg)
18 |
436751 - JOINT More informationQuantity required : 1 |
||||||
|
19 |
Pompe à huile complète |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
20 |
006975 - RONDELLE S00697500 More informationQuantity required : 4 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
22 |
287913 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
23 |
436695 - CONE ELASTIQUE 6X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
24 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
||||||
|
25 |
436810 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
26 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585- More informationQuantity required : 2 |
