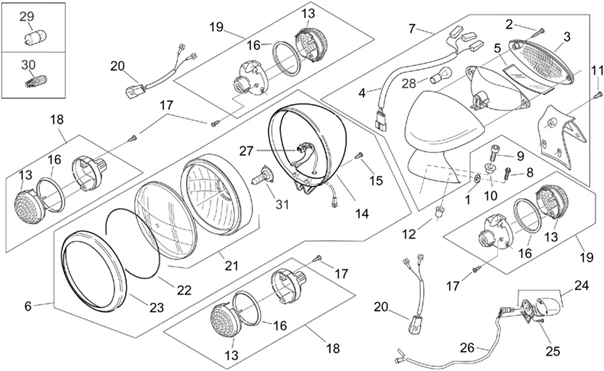

Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.33 FEUX - CUSTOM
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_28.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
1 |
AP8150013 - RONDELLE More informationQuantity required : 2 |
||||||
2 |
AP8224243 - VIS TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/1/4/img/57314.jpg)
3 |
AP8224229 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
4 |
AP8224227 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
5 |
AP8224228 - VERRE LUMIERE PLAQUE More informationQuantity required : 1 |
||||||
|
6 |
AP8124716 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
6 |
Phare avant |
||||||
|
7 |
AP8224177 - FEU ARR. CHROME; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
8 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
10 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
12 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 2 |
||||||
|
13 |
AP8224223 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
|
14 |
AP8224237 - CALOTTE More informationQuantity required : 1 |
||||||
|
15 |
642143 - VIS AUTORANDEUSE More informationQuantity required : 2 |
||||||
|
16 |
AP8224234 - BAGUE CHROMEE More informationQuantity required : 4 |
||||||
|
17 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 8 |
||||||
|
18 |
FLASHER-FRONT ORANGE "PIAGGIO GENUINE PART" 50 MOJITO, HABANA 2004>2007 -AP8224171- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/8/6/img/57286.jpg)
19 |
FLASHER-REAR ORANGE "PIAGGIO GENUINE PART" 50 MOJITO, HABANA 2004>2007 -AP8224172- More informationQuantity required : 2 |
||||||
|
20 |
AP8224075 - CABLAGE CLIGNOT. More informationQuantity required : 2 |
||||||
|
21 |
AP8124924 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
21 |
AP8124925 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
22 |
AP8220553 - JOINT More informationQuantity required : 1 |
||||||
|
23 |
AP8224236 - BAGUE CHROMEE More informationQuantity required : 1 |
||||||
|
24 |
AP8124168 - FEU DE PLAQUE More informationQuantity required : 1 |
||||||
|
25 |
AP8150120 - VIS More informationQuantity required : 1 |
||||||
|
26 |
AP8124758 - CABLAGE LUMIERE PLAQUE More informationQuantity required : 1 |
||||||
|
27 |
AP8124923 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
28 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953- More informationQuantity required : 1 |
||||||
|
29 |
|
||||||
|
30 |
|
||||||
|
31 |
|
