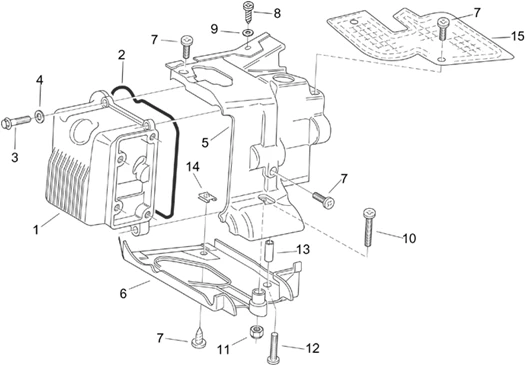

Moteur : 29.45 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.45.PNG)
1 |
CACHE CULASSE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/6/img/66606.jpg)
2 |
481075 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
Vis bride |
||||||
|
4 |
016335 - RONDELLE More informationQuantity required : 4 |
||||||
|
5 |
486067 - CACHE More informationQuantity required : 1 |
||||||
|
6 |
Couvre-cylindre côté échap. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
7 |
1A003109 - VIS M5X16 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/1/img/65391.jpg)
8 |
015737 - VIS S01573700 More informationQuantity required : 2 |
||||||
|
9 |
013754 - RONDELLE S01375400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
10 |
015835 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
12 |
296324 - VIS More informationQuantity required : 1 |
||||||
|
13 |
Entretoise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/5/6/img/111156.jpg)
14 |
CM017414 - PLAQUETTE ELASTIQUE More informationQuantity required : 2 |
||||||
|
15 |
Pann.antich. |
