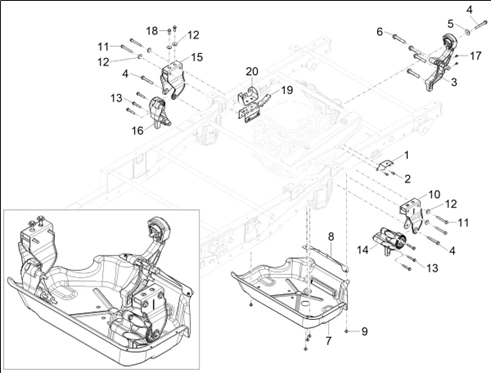

01_electric motor : 01.02 02_SUPPORTS MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_01.02.png)
1 |
CE003101 - EDU EAU150 BOSCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
2 |
031119 - BOULON More informationQuantity required : 2 |
||||||
|
3 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
4 |
WET10100000003 - EDU AVM ASSY, RR More informationQuantity required : 3 |
||||||
|
5 |
WQ1851290TF61 - BOLT M12X1.25X90 More informationQuantity required : 1 |
||||||
|
6 |
WQ402B12T28F61 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
WQ1851270TF62 - BOLT M12X1.25X70 More informationQuantity required : 5 |
||||||
|
10 |
CM289516 - HEXHEAD SCREW M6X16 W/DOUBLE CAPT.WASHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/5/9/img/173359.jpg)
11 |
WL0101180100A0 - HEXAGON FLANGE BOLT More informationQuantity required : 4 |
||||||
|
12 |
WQ402B10T28F61 - RONDELLE More informationQuantity required : 6 |
||||||
|
13 |
WQ402B10T28F61 - RONDELLE More informationQuantity required : 6 |
||||||
|
14 |
WQ1851060TF61 - BOLT M10X1.25X60 More informationQuantity required : 1 |
||||||
|
15 |
WET10100000007 - EDU AVM BRACKET ASSY, LH More informationQuantity required : 1 |
||||||
|
16 |
WET101030200A0 - RH ENGINE BRACKET (BIW SIDE) More informationQuantity required : 1 |
||||||
|
17 |
CM288916 - VIS More informationQuantity required : 2 |
||||||
|
18 |
CM288916 - VIS More informationQuantity required : 2 |
||||||
|
19 |
|
