Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

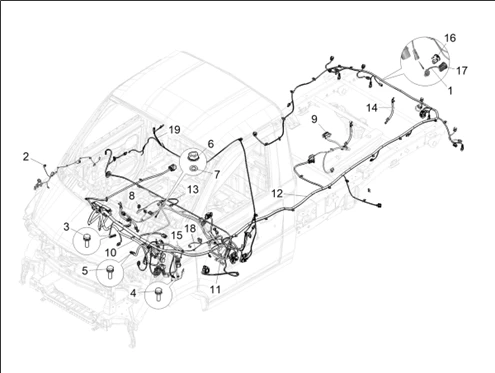

11_circuit électrique : 11.07 07_INSTALLATION ÉLECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_11.07.png)
1 |
WET37400000034 - USS ADAS WIRING HARNESS (PIGTAIL) More informationQuantity required : 4 |
||||||
|
2 |
WET37400000034 - USS ADAS WIRING HARNESS (PIGTAIL) More informationQuantity required : 1 |
||||||
|
3 |
WQ1840616F61 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 5 |
||||||
|
4 |
WQ1840620F62 - HEXAGON HEAD BOLT WITH FLANGE More informationQuantity required : 1 |
||||||
|
5 |
WQ1840816F61 - HEXAGON FLANGE BOLT More informationQuantity required : 8 |
||||||
|
6 |
WQ32006F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 4 |
||||||
|
7 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 5 |
||||||
|
8 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 1 |
||||||
|
9 |
WET36200000014 - HANDBRAKE TRANSITION WIRING HARNESS + E More informationQuantity required : 1 |
||||||
|
10 |
WET36200000022 - EDU WIRING HARNESS More informationQuantity required : 1 |
||||||
|
12 |
WET374070402A0 - SECONDARY BODY WIRING HARNESS More informationQuantity required : 1 |
||||||
|
13 |
WET362010114A0 - FRAME WIREHARNESS SW 3070 BEV More informationQuantity required : 3 |
||||||
|
14 |
WET36200000019 - GND CABLE 6MMQ More informationQuantity required : 5 |
||||||
|
15 |
WET36200000020 - GND CABLE 35MMQ More informationQuantity required : 1 |
||||||
|
16 |
WET38700000006 - ADAS - USS REAR BRACKET More informationQuantity required : 4 |
||||||
|
17 |
WET38700000005 - ADAS - USS More informationQuantity required : 4 |
||||||
|
18 |
WET37400000023 - DRIVER DOOR WIRING HARNESS W/ EL.MIRROR More informationQuantity required : 1 |
||||||
|
19 |
WET374040102A0 - ROOF WIRING HARNESS More informationQuantity required : 1 |
