Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

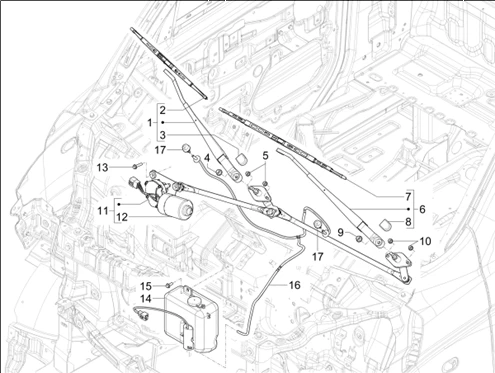

11_circuit électrique : 11.10 10_TERGICRISTALLO ANTERIORE E POSTERIORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_11.10.png)
1 |
WQ146B0620F62 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 1 |
||||||
|
2 |
WET52500000002 - ESSUIE-GLACE AVANT DROITE More informationQuantity required : 1 |
||||||
|
3 |
WET525010600A0 - FRONT WIPER PLUG COVER More informationQuantity required : 1 |
||||||
|
4 |
WQ33008F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 1 |
||||||
|
5 |
WQ32006F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 2 |
||||||
|
6 |
WQ32006F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 1 |
||||||
|
7 |
WET52500000001 - ESSUIE-GLACE AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
WET525010600A0 - FRONT WIPER PLUG COVER More informationQuantity required : 1 |
||||||
|
9 |
WQ33008F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 1 |
||||||
|
10 |
WQ32006F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/3/img/173883.jpg)
11 |
WL0525010339A0 - FRONT WIPER AND CONN.MECHANISM ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/4/img/173884.jpg)
12 |
WL0525010413A0 - FRONT WIPER ASSEMBLY More informationQuantity required : 1 |
||||||
|
13 |
WQ1840625F62 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/5/img/173885.jpg)
14 |
WET525020100A0 - RESERVOIR DE LAVE-GLACE AVEC POMPE ELEC More informationQuantity required : 1 |
||||||
|
15 |
WQ1840616F61 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 1 |
||||||
|
16 |
WL0525020032A0 - TUBE LAVE-VITRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/8/7/img/173887.JPG)
17 |
WL0525020033A0 - PULVERISATEUR More informationQuantity required : 2 |
