Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 3070
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

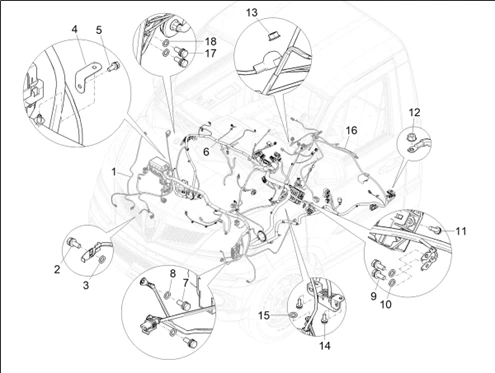

11_circuit électrique : 11.06 06_INSTALLATION ÉLECTRIQUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1319/PORTER_NPE_3070_11.06.png)
1 |
4P000133 - THREE-LOBE SCREW HEX 5X15 UNI 8110 Z.N. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/9/9/img/173199.jpg)
2 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 1 |
||||||
|
4 |
WL0362053013A0 - WIRING HARNESS FIXING BRACKET More informationQuantity required : 1 |
||||||
|
5 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 2 |
||||||
|
9 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 2 |
||||||
|
11 |
WQ236B0520F61 - PAN HEAD SCREW W CROSS SLOT More informationQuantity required : 2 |
||||||
|
12 |
WQ32006F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 1 |
||||||
|
13 |
WQ32008F61 - ÉROU HEXAGONAL BRIDE More informationQuantity required : 1 |
||||||
|
14 |
WQ236B0412F61 - CROSS CAP SCREW WITH PLANE AND ELASTIC More informationQuantity required : 2 |
||||||
|
15 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 1 |
||||||
|
16 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 1 |
||||||
|
17 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 2 |
