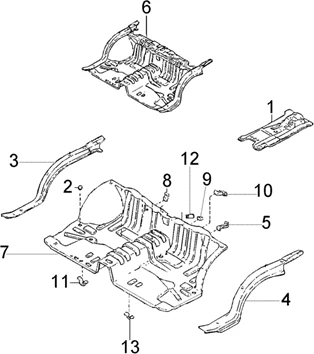

Châssis : T40 PANNEAU PLANCHER AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T40.PNG)
1 |
5510387Z03000 - PLAQUE More informationQuantity required : 1 |
||||||
|
2 |
BOUCHON |
||||||
|
3 |
D5823187Z01 - ELEMENT More informationQuantity required : 1 |
||||||
|
4 |
D5823287Z015 - ELEMENT More informationQuantity required : 1 |
||||||
|
5 |
SUPPORT |
||||||
|
6 |
B0076835 - PANEL FR FLOOR More informationQuantity required : 1 |
||||||
|
7 |
B0234485 - PANNEAU More informationQuantity required : 1 |
||||||
|
8 |
SUPPORT |
||||||
|
9 |
ARRET |
||||||
|
10 |
SUPPORT |
||||||
|
11 |
SUPPORT |
||||||
|
12 |
SUPPORT |
||||||
|
13 |
Collier |
