Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

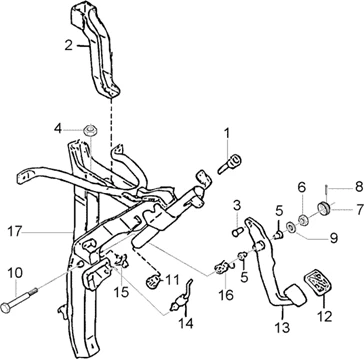

Transmisisons : T25 PÉDALE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T25.PNG)
1 |
9004386033000 - DOUILLE More informationQuantity required : 1 |
||||||
|
2 |
5532687Z03000 - TUBE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/4/6/img/110546.jpg)
3 |
9004159230000 - VIS More informationQuantity required : 2 |
||||||
|
4 |
D9165160820 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/7/img/113357.jpg)
5 |
1E000539 - TAMPON More informationQuantity required : 2 |
||||||
|
5 |
1E000539 - TAMPON More informationQuantity required : 2 |
||||||
|
6 |
ECROU |
||||||
|
7 |
GOUPILLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
8 |
003208 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
10 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
11 |
9004385001000 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/6/8/img/112068.jpg)
12 |
PEDAL RUBBER COVER "PIAGGIO GENUINE PART" PORTER -262128 More informationQuantity required : 1 |
||||||
|
13 |
4710187Z04000 - PEDALE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
14 |
STOP SWITCH "PIAGGIO GENUINE PART" APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION -B023289 More informationQuantity required : 1 |
||||||
|
15 |
COLLIER |
||||||
|
16 |
9004508351000 - More informationQuantity required : 1 |
||||||
|
17 |
613687 - SUPPORT More informationQuantity required : 1 |
