Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

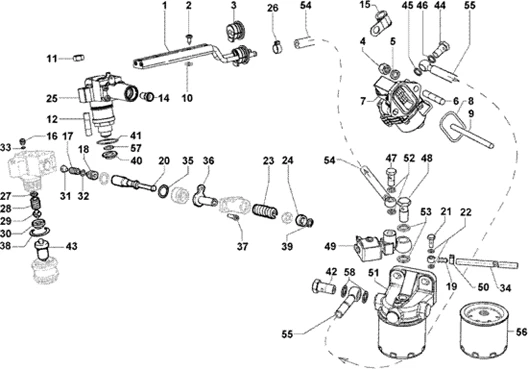

Moteur : T7 CIRCUIT COMBUSTIBLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T7.PNG)
1 |
850303 - TUYAU More informationQuantity required : 1 |
||||||
|
2 |
493271 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/5/img/113365.jpg)
3 |
493132 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/1/img/110141.jpg)
4 |
850270 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
850111 - ECROU More informationQuantity required : 2 |
||||||
|
6 |
GOUJON M8 X 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/8/3/img/120483.jpg)
7 |
FEED PUMP "PIAGGIO GENUINE PART" PORTER 1400 DIESEL -850055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/9/3/img/111293.jpg)
8 |
INJECTOR O'RING GASKET "PIAGGIO GENUINE PART" PIAGGIO PORTER, CARGO DIESEL -493009 More informationQuantity required : 1 |
||||||
|
9 |
493897 - PUNTALINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/1/1/img/111211.jpg)
10 |
493016 - BAGUE More informationQuantity required : 4 |
||||||
|
11 |
ECROU |
||||||
|
11 |
ECROU |
||||||
|
12 |
GOUJON |
||||||
|
13 |
850111 - ECROU More informationQuantity required : 4 |
||||||
|
14 |
493030 - POUSSOIR More informationQuantity required : 2 |
||||||
|
15 |
COLLIER |
||||||
|
16 |
493462 - SOUPAPE 1400 More informationQuantity required : 2 |
||||||
|
17 |
850273 - RESSORT More informationQuantity required : 2 |
||||||
|
18 |
493739 - SOUPAPE More informationQuantity required : 2 |
||||||
|
19 |
RACCORD |
||||||
|
20 |
ELEM POMPE 1400 |
||||||
|
21 |
493056 - BOULON More informationQuantity required : 1 |
||||||
|
22 |
493126 - JOINT 1200 More informationQuantity required : 2 |
||||||
|
23 |
850297 - RESSORT More informationQuantity required : 2 |
||||||
|
24 |
850274 - SPINTORE More informationQuantity required : 2 |
||||||
|
25 |
INJECTOR PUMP "PIAGGIO GENUINE PART" PORTER 1400 DIESEL -493460- More informationQuantity required : 2 |
||||||
|
26 |
850268 - COLLIER More informationQuantity required : 1 |
||||||
|
27 |
EPAISSEUR |
||||||
|
27 |
EPAISSEUR 1,90 |
||||||
|
27 |
493212 - EPAISSEUR 1,80 More informationQuantity required : 2 |
||||||
|
27 |
493213 - EPAISSEUR 1,70 More informationQuantity required : 2 |
||||||
|
27 |
EPAISSEUR 1,60 |
||||||
|
27 |
493215 - EPAISSEUR 1,50 More informationQuantity required : 2 |
||||||
|
27 |
EPAISSEUR 1,40 |
||||||
|
27 |
EPAISSEUR 1,30 |
||||||
|
27 |
493218 - EPAISSEUR 1,20 More informationQuantity required : 2 |
||||||
|
27 |
493219 - EPAISSEUR 1,10 More informationQuantity required : 2 |
||||||
|
27 |
493220 - EPAISSEUR 1,00 More informationQuantity required : 2 |
||||||
|
28 |
850275 - RESSORT More informationQuantity required : 2 |
||||||
|
29 |
850276 - ASTA DI COM. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/0/4/img/118704.jpg)
30 |
850277 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
31 |
UGELLO |
||||||
|
32 |
493133 - JOINT More informationQuantity required : 2 |
||||||
|
33 |
850289 - JOINT More informationQuantity required : 2 |
||||||
|
34 |
850082 - CANALISAT. More informationQuantity required : 1 |
||||||
|
35 |
850343 - CIRCLIPS 1200.277 More informationQuantity required : 2 |
||||||
|
36 |
850279 - COM.REGOL. More informationQuantity required : 2 |
||||||
|
37 |
850280 - VIS More informationQuantity required : 8 |
||||||
|
38 |
493017 - BAGUE 25,12 X 1,78 More informationQuantity required : 2 |
||||||
|
39 |
493023 - BAGUE D 19 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/8/1/img/110981.jpg)
40 |
493151 - PARE-FLAMME More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/4/9/img/116249.jpg)
41 |
493011 - BAGUE 26,70 X 1,78 More informationQuantity required : 2 |
||||||
|
42 |
493055 - BOULON More informationQuantity required : 1 |
||||||
|
43 |
850366 - INIETTORE 6531.436 More informationQuantity required : 2 |
||||||
|
44 |
493054 - BOULON M 10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/5/8/img/109958.jpg)
45 |
GASKET "PIAGGIO GENUINE PART" -493123 More informationQuantity required : 2 |
||||||
|
46 |
GASKET "PIAGGIO GENUINE PART" -493123 More informationQuantity required : 2 |
||||||
|
47 |
493054 - BOULON M 10 More informationQuantity required : 1 |
||||||
|
48 |
850281 - VIS More informationQuantity required : 1 |
||||||
|
49 |
SOLENOID VALVE "PIAGGIO GENUINE PART" CARGO DIESEL -615106- More informationQuantity required : 1 |
||||||
|
50 |
850282 - COLLIER More informationQuantity required : 1 |
||||||
|
51 |
COMPLTE FUEL FILTER WITH PRIMING PUMP "PIAGGIO GENUINE PART" PIAGGIO CARGO -850305- More informationQuantity required : 1 |
||||||
|
52 |
GASKET "PIAGGIO GENUINE PART" -493123 More informationQuantity required : 2 |
||||||
|
53 |
566787 - JOINT EN CUIVRE 1400 More informationQuantity required : 2 |
||||||
|
54 |
644419 - TUBAZ.GASOL. More informationQuantity required : 1 |
||||||
|
55 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/2/1/img/118721.jpg)
56 |
DIESEL GAS-OIL FILTER "PIAGGIO GENUINE PART" CARGO DIESEL -850306 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/7/0/img/110170.jpg)
57 |
493127 - JOINT More informationQuantity required : 2 |
||||||
|
58 |
566787 - JOINT EN CUIVRE 1400 More informationQuantity required : 2 |
