Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

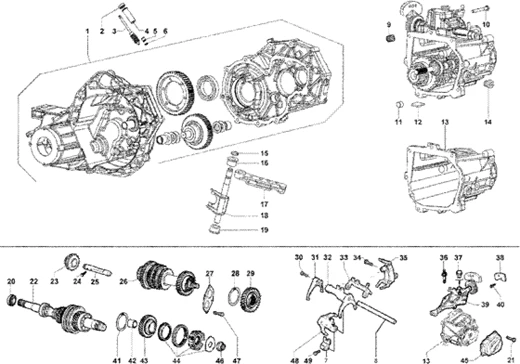

Moteur : T15 BOÎTE DE VITESSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T15.PNG)
1 |
645314 - BOITE VITESSE More informationQuantity required : 1 |
||||||
|
2 |
850148 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
3 |
850149 - RENVOI COMPTEUR More informationQuantity required : 1 |
||||||
|
4 |
850150 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
850151 - BAGUE More informationQuantity required : 1 |
||||||
|
6 |
850152 - BAGUE ELASTIQUE More informationQuantity required : 1 |
||||||
|
7 |
850191 - FOURCHE More informationQuantity required : 1 |
||||||
|
8 |
850192 - ARBRE More informationQuantity required : 1 |
||||||
|
9 |
850153 - BOUCHON More informationQuantity required : 1 |
||||||
|
10 |
850154 - BOULON More informationQuantity required : 4 |
||||||
|
11 |
850155 - GRANO More informationQuantity required : 2 |
||||||
|
12 |
850156 - BOUCHON More informationQuantity required : 1 |
||||||
|
13 |
850157 - CARTER DE DIFFERENTIEL More informationQuantity required : 1 |
||||||
|
14 |
850158 - BOUCHON More informationQuantity required : 1 |
||||||
|
15 |
BAGUE ELASTIQUE |
||||||
|
16 |
850160 - BAGUE More informationQuantity required : 1 |
||||||
|
17 |
850161 - LEVIER More informationQuantity required : 1 |
||||||
|
18 |
850162 - LEVIER More informationQuantity required : 1 |
||||||
|
19 |
850163 - BAGUE More informationQuantity required : 1 |
||||||
|
20 |
850164 - JOINT More informationQuantity required : 1 |
||||||
|
21 |
850194 - BOULON More informationQuantity required : 7 |
||||||
|
22 |
B026154 - ARBRE PRIMARIE More informationQuantity required : 1 |
||||||
|
23 |
645318 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
23 |
ENGRENAGE |
||||||
|
24 |
850167 - BOULON More informationQuantity required : 1 |
||||||
|
25 |
850168 - ARBRE More informationQuantity required : 1 |
||||||
|
26 |
B026155 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
27 |
850170 - PLAQUE More informationQuantity required : 1 |
||||||
|
28 |
850171 - BAGUE ELASTIQUE More informationQuantity required : 1 |
||||||
|
29 |
850172 - ENGRENAGE 5EME More informationQuantity required : 1 |
||||||
|
30 |
850173 - BOULON More informationQuantity required : 1 |
||||||
|
31 |
850174 - FOURCHE More informationQuantity required : 1 |
||||||
|
32 |
850175 - FOURCHE More informationQuantity required : 1 |
||||||
|
33 |
646381 - FOURCHE More informationQuantity required : 1 |
||||||
|
33 |
FOURCHE |
||||||
|
34 |
850177 - BOULON More informationQuantity required : 2 |
||||||
|
35 |
850178 - SUPPORT More informationQuantity required : 1 |
||||||
|
36 |
850179 - BOULON More informationQuantity required : 1 |
||||||
|
37 |
850180 - BOUCHON More informationQuantity required : 1 |
||||||
|
38 |
850181 - MASSE More informationQuantity required : 1 |
||||||
|
39 |
645320 - COUVERCLE More informationQuantity required : 1 |
||||||
|
39 |
COUVERCLE |
||||||
|
40 |
850183 - BOULON More informationQuantity required : 2 |
||||||
|
41 |
850184 - BAGUE ELASTIQUE More informationQuantity required : 1 |
||||||
|
42 |
850185 - BAGUE More informationQuantity required : 1 |
||||||
|
43 |
850186 - ENGRENAGE 5EME More informationQuantity required : 1 |
||||||
|
44 |
645317 - BAGUE More informationQuantity required : 1 |
||||||
|
44 |
BAGUE |
||||||
|
45 |
850193 - COUVERCLE More informationQuantity required : 1 |
||||||
|
46 |
850188 - DOUILLE More informationQuantity required : 2 |
||||||
|
47 |
850189 - BOULON More informationQuantity required : 4 |
||||||
|
48 |
850190 - FOURCHE More informationQuantity required : 1 |
||||||
|
49 |
850173 - BOULON More informationQuantity required : 1 |
