Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

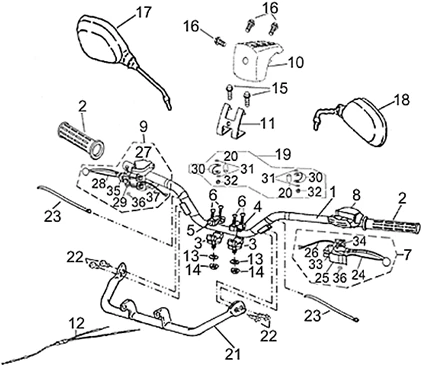

Chassis : 28.29 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.29.PNG)
1 |
Guidon cpl. |
||||||
|
2 |
Couple manettes |
||||||
|
3 |
Plaque support |
||||||
|
4 |
AP8910281 - CAVALLOTTO More informationQuantity required : 1 |
||||||
|
5 |
Cavalier |
||||||
|
6 |
AP8910333 - VITE TCEI M6X25 More informationQuantity required : 4 |
||||||
|
7 |
Levier frein G.cpl. |
||||||
|
8 |
Déviateur feux |
||||||
|
9 |
Levier frein D.cpl |
||||||
|
10 |
Tableau de bord |
||||||
|
11 |
Support |
||||||
|
11 |
Support |
||||||
|
12 |
Câble gaz |
||||||
|
13 |
Rondelle plate |
||||||
|
14 |
DADO M10 |
||||||
|
15 |
Vis bride |
||||||
|
16 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 3 |
||||||
|
17 |
Miroir rétroviseur dte |
||||||
|
18 |
AP8910514 - SPECCHIO RETROVISORE SX More informationQuantity required : 1 |
||||||
|
19 |
Kit miroir |
||||||
|
20 |
AP8911205 - DISTANZIALE More informationQuantity required : 2 |
||||||
|
21 |
Support phare AV |
||||||
|
22 |
Vis bride |
||||||
|
23 |
AP8911021 - FASCETTA More informationQuantity required : 2 |
||||||
|
24 |
Levier frein G |
||||||
|
25 |
Plaquette |
||||||
|
26 |
Contacteur de stop |
||||||
|
27 |
AP8910277 - SUPPORTO More informationQuantity required : 1 |
||||||
|
28 |
AP8910276 - LEVA FRENO DX More informationQuantity required : 1 |
||||||
|
29 |
AP8910551 - NIPPLO More informationQuantity required : 1 |
||||||
|
30 |
AP8911206 - SUPPORTO More informationQuantity required : 2 |
||||||
|
31 |
Rondelle plate |
||||||
|
32 |
AP8910313 - DADO FLANG. M8 More informationQuantity required : 2 |
||||||
|
33 |
AP8910305 - VITE TE M6X23 More informationQuantity required : 1 |
||||||
|
34 |
Support |
||||||
|
35 |
VITE TE M6X23 |
||||||
|
36 |
DADO M6 |
||||||
|
37 |
Interrupteur stop D. |
