Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

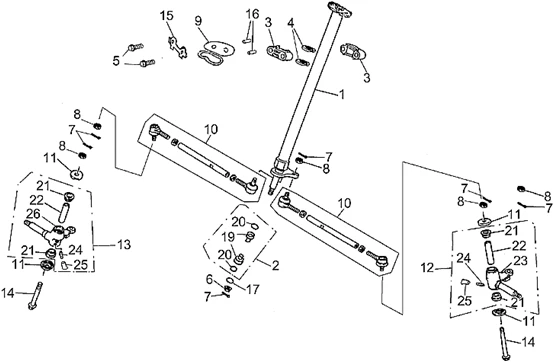

Chassis : 28.32 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.32.PNG)
1 |
Base avec tube |
||||||
|
2 |
Roulement |
||||||
|
3 |
AP8910986 - SUPPORTO More informationQuantity required : 2 |
||||||
|
4 |
Joint spi |
||||||
|
5 |
AP8911037 - VITE TE FLANG.M8X60 More informationQuantity required : 2 |
||||||
|
6 |
AP8910315 - DADO M10 More informationQuantity required : 1 |
||||||
|
7 |
Goupille |
||||||
|
8 |
AP8910322 - DADO AUTOBLOCC.M10 More informationQuantity required : 6 |
||||||
|
9 |
AP8910963 - GUIDACAVO More informationQuantity required : 1 |
||||||
|
10 |
Tirant |
||||||
|
11 |
Pare-poussière |
||||||
|
12 |
AP8910966 - SNODO SX CPL. More informationQuantity required : 1 |
||||||
|
13 |
AP8910967 - SNODO DX CPL. More informationQuantity required : 1 |
||||||
|
14 |
VIS0X105 |
||||||
|
15 |
Rondelle élastique |
||||||
|
16 |
AP8910962 - DISTANZIALE 9X14X42 More informationQuantity required : 2 |
||||||
|
17 |
Rondelle en cuivre |
||||||
|
18 |
Goupille |
||||||
|
19 |
SEDE CUSCINETTO |
||||||
|
20 |
Joint torique |
||||||
|
21 |
Support |
||||||
|
22 |
Entretoise |
||||||
|
23 |
AP8910959 - SNODO SX More informationQuantity required : 1 |
||||||
|
24 |
AP8910256 - VALVOLA INGRASSAGGIO More informationQuantity required : 2 |
||||||
|
25 |
Capuchon |
||||||
|
26 |
Fourchette D |
