Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

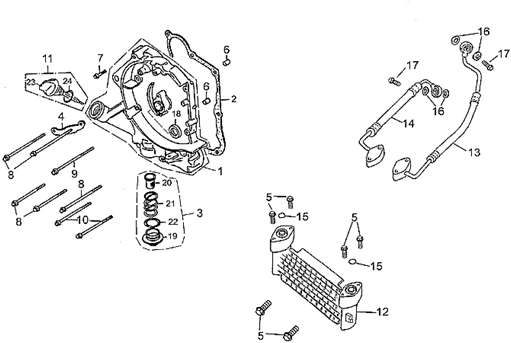

Moteur : 29.06 DEMI-CARTER D
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_29.06.PNG)
1 |
Demi-carter D |
||||||
|
2 |
Joint |
||||||
|
3 |
Bouchon filtre à huile |
||||||
|
4 |
AP8910843 - PIASTRINA More informationQuantity required : 1 |
||||||
|
5 |
Vis bride |
||||||
|
6 |
AP8911071 - SPINA 8X14 More informationQuantity required : 2 |
||||||
|
7 |
AP8911093 - VITE TE FLANG.M6X40 More informationQuantity required : 1 |
||||||
|
8 |
AP8911100 - VITE TE FLANG.M6X95 More informationQuantity required : 5 |
||||||
|
9 |
AP8911101 - VITE TE FLANG.M6X100 More informationQuantity required : 1 |
||||||
|
10 |
AP8911102 - VITE TE FLANG.M6X110 More informationQuantity required : 2 |
||||||
|
11 |
AP8910693 - ASTINA LIVELLO OLIO CPL. More informationQuantity required : 1 |
||||||
|
12 |
AP8911173 - RADIATORE More informationQuantity required : 1 |
||||||
|
13 |
Manchon |
||||||
|
14 |
Manchon |
||||||
|
15 |
AP8911176 - O-RING More informationQuantity required : 2 |
||||||
|
16 |
AP8910433 - VITE TE M8X12 More informationQuantity required : 8 |
||||||
|
17 |
AP8910932 - VITE FISS.TUBO OLIO M12X1,25 More informationQuantity required : 4 |
||||||
|
18 |
Joint spi |
||||||
|
19 |
Bouchon huile |
||||||
|
20 |
AP8910690 - FILTRO OLIO More informationQuantity required : 1 |
||||||
|
21 |
AP8910691 - MOLLA FILTRO OLIO More informationQuantity required : 1 |
||||||
|
22 |
AP8911034 - O-RING 30,8MM More informationQuantity required : 1 |
||||||
|
23 |
AP8910692 - TAPPO LIVELLO OLIO More informationQuantity required : 1 |
||||||
|
24 |
AP8911030 - O-RING 18X3 More informationQuantity required : 1 |
