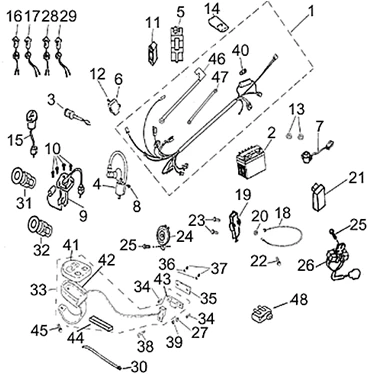

Chassis : 28.36 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.36.PNG)
1 |
Câblage principal |
||||||
|
2 |
Batterie |
||||||
|
3 |
Bloc démarreur |
||||||
|
4 |
AP8910833 - BOBINA CPL. More informationQuantity required : 1 |
||||||
|
5 |
Unité CDI |
||||||
|
6 |
Régulateur de tension |
||||||
|
7 |
AP8910880 - RELE' AVVIAMENTO More informationQuantity required : 1 |
||||||
|
8 |
VITE M5X20 |
||||||
|
9 |
Sonde niveau essence |
||||||
|
10 |
Vis bride |
||||||
|
11 |
Caoutchouc |
||||||
|
12 |
Vis bride |
||||||
|
13 |
Vis bride |
||||||
|
14 |
AP8910939 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
15 |
Indicateur niveau essence |
||||||
|
16 |
Tém.libre |
||||||
|
17 |
Lampe hazzard |
||||||
|
18 |
Switch |
||||||
|
19 |
AP8910867 - INTERRUTTORE STOP MOTORE More informationQuantity required : 1 |
||||||
|
20 |
Écrou |
||||||
|
21 |
Centrale clignotement |
||||||
|
22 |
AP8911044 - VITE TE FLANG.M3X10 More informationQuantity required : 1 |
||||||
|
23 |
Vis bride |
||||||
|
24 |
AP8910879 - CLAXON More informationQuantity required : 1 |
||||||
|
25 |
Vis bride |
||||||
|
26 |
AP8910197 - RESISTENZA More informationQuantity required : 1 |
||||||
|
27 |
DADO M5 |
||||||
|
28 |
Lampe bas faisceau |
||||||
|
29 |
Lampe faisceau de hight |
||||||
|
30 |
AP8911021 - FASCETTA More informationQuantity required : 1 |
||||||
|
31 |
Clignotement |
||||||
|
32 |
Clignotement |
||||||
|
33 |
Tachymètre cpl. |
||||||
|
34 |
Vis bride |
||||||
|
35 |
Plaquette |
||||||
|
36 |
Rondelle plate |
||||||
|
37 |
DADO M4 |
||||||
|
38 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 1 |
||||||
|
39 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 1 |
||||||
|
40 |
AP8911146 - FUSIBILE 15A More informationQuantity required : 1 |
||||||
|
41 |
AP8910876 - TACHIMETRO More informationQuantity required : 1 |
||||||
|
42 |
Support tachymètre |
||||||
|
43 |
AP8910874 - SENSORE More informationQuantity required : 1 |
||||||
|
44 |
Caoutchouc |
||||||
|
45 |
Vis bride |
||||||
|
46 |
Câblage batterie |
||||||
|
47 |
Câblage masse-batterie |
||||||
|
48 |
AP8911244 - INTERRUTTORE FOLLE More informationQuantity required : 1 |
